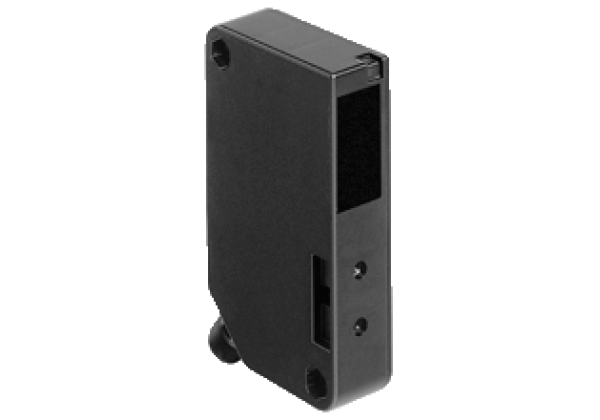

Retroreflective sensor RL91-6-IR/49/59/73c
Brand: Pepperl+Fuchs
Code: RL91-6-IR/49/59/73c
Retroreflective sensor for single-beam closing edge protection, Narrow housing suitable for small gaps, Sturdy plastic housing, Various possibilities for mounting, Version with infrared light, Construction type(S2): Rectangular type, Light source: LED, Light type: modulated infrared light, Operating voltage: 12... 30 V DC, Signal output: 1 NPN, 1 PNP synchronized-switching, short-circuit protected, reverse polarity protected, UL approval: cULus
Datasheet excerpt: Technical data of RL91-6-IR/49/59/73c
| Product Description |
|---|
| Mid-range photoelectric sensors for detecting people, objects, and vehicles |
| General specifications | ||
|---|---|---|
| Effective detection range | 0... 6 m | |
| Reflector distance | 0... 6 m | |
| Threshold detection range | 9 m | |
| Reference target | H85-2 reflector | |
| Light source | LED | |
| Light type | modulated infrared light | |
| Diameter of the light spot | approx. 230 mm at a distance of 6000 mm | |
| Opening angle | approx. 2.5 ° | |
| Ambient light limit | 90000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 1083.4 a | |
| Indicators/operating means | ||
| Function indicator | LED red, flashes when falling short of the operating reserve | |
| Electrical specifications | ||
| Operating voltage | 12... 30 V DC | |
| No-load supply current | < 100 mA | |
| Output | ||
| Switching type | dark-on | |
| Signal output | 1 NPN, 1 PNP synchronized-switching, short-circuit protected, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | 200 mA | |
| Switching frequency | 25 Hz | |
| Response time | 20 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | cULus | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -20... 55 °C (-4... 131 °F) | |
| Storage temperature | -20... 75 °C (-4... 167 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | Luran® | |
| Optical face | Luran® | |
| Mass | 100 g | |
