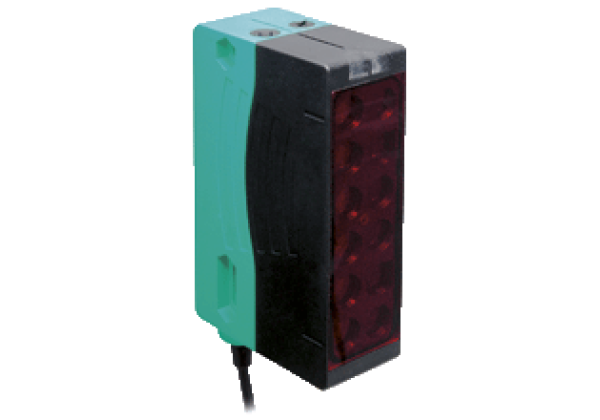

Retroreflective area sensor RLG28-55-7226
Brand: Pepperl+Fuchs
Code: RLG28-55-7226
Retroreflective area sensor with 6 beams in the standard photoelectric-sensor enclosure, red light, 0.6 m detection range, light/dark on, push-pull output, fixed cable with socket, Retro-reflective area sensor with 6 light beams in standard photoelectric-sensor enclosure, Connection compatibly replaces single beam photoelectric sensor, Reliable detection of the front edge of the object irrespective of its shape and position, Constant object detection from 12 mm within the entire detection area
Datasheet excerpt: Technical data of RLG28-55-7226
| Product Description |
|---|
| Retroreflective area sensor with 6 beams in the standard photoelectric-sensor enclosure, red light, 0.6 m detection range, light/dark on, push-pull output, fixed cable with socket |
| General specifications | ||
|---|---|---|
| Effective detection range | 0... 0.6 m | |
| Reflector distance | 0.15... 0.6 m | |
| Threshold detection range | 1 m | |
| Sensing range | typical 60 mm , Object has to cover the refelector completely in one dimension | |
| Reference target | Reflector H50x100 , H85-2 reflector | |
| Light source | LED | |
| Light type | modulated visible red light , 625 nm | |
| Polarization filter | yes | |
| Number of beams | 6 | |
| Opening angle | +/- 2.5 ° | |
| Ambient light limit | 5000 Lux | |
| Resolution | 12 mm | |
| Functional safety related parameters | ||
| MTTFd | 310 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) short-circuit : LED green flashing (approx. 4 Hz) | |
| Function indicator | 2 LEDs yellow, light up when light beam is free, flash when falling short of the stability control, off when light beam is interrupted Teach-In : LED yellow/green; equiphase flashing; 2,5 Hz | |
| Control elements | Teach-In key | |
| Electrical specifications | ||
| Operating voltage | 12... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | max. 50 mA | |
| Output | ||
| Switching type | light/dark on | |
| Signal output | 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 2.5 V DC | |
| Switching frequency | 230 Hz | |
| Response time | 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -10... 40 °C (14... 104 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Housing width | 25.8 mm | |
| Housing height | 88 mm | |
| Housing depth | 54.3 mm | |
| Degree of protection | IP67 | |
| Connection | 300 mm fixed cable with M12 x 1, 4-pin connector | |
| Material | ||
| Housing | Plastic ABS | |
| Optical face | Plastic pane | |
| Mass | 100 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270910 |
| ECLASS 12.0 | 27270910 |
| ECLASS 11.0 | 27270910 |
| ECLASS 10.0.1 | 27270910 |
| ECLASS 9.0 | 27270910 |
| ECLASS 8.0 | 27270910 |
| ECLASS 5.1 | 27270910 |
| ETIM 9.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 5.0 | EC002549 |
| UNSPSC 12.1 | 39121528 |
