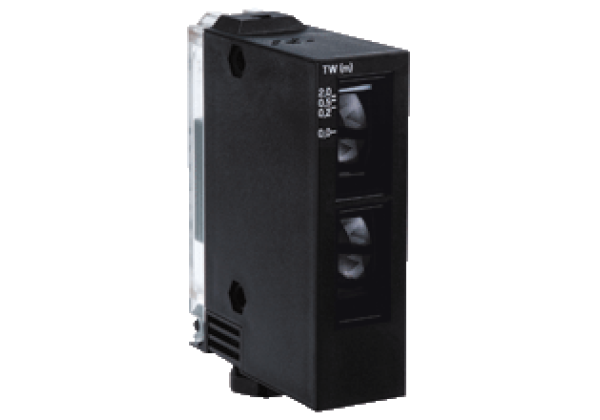

Background suppression sensor RLK23-1482
Brand: Pepperl+Fuchs
Code: RLK23-1482
Background suppression sensor, Adjustable background suppression, Infrared light, Timer function, Sturdy plastic housing, Optical surface made of scratch-resistant glass
Datasheet excerpt: Technical data of RLK23-1482
| Product Description |
|---|
| Background suppression sensor |
| General specifications | ||
|---|---|---|
| Detection range | 50... 2000 mm , preset to 800 mm +/-50 mm | |
| Adjustment range | 200... 2000 mm | |
| Light source | IRED | |
| Light type | modulated infrared light | |
| Black-white difference (6 %/90 %) | < 20 % | |
| Diameter of the light spot | 50 mm at 2000 mm sensor range | |
| Opening angle | 1.5 ° | |
| Ambient light limit | 5000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 850 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Function indicator | LED yellow, lights up with receiver lit | |
| Control elements | Programming switch for light/dark switching | |
| Control elements | Sensing range adjuster | |
| Control elements | Time adjuster | |
| Electrical specifications | ||
| Operating voltage | 12... 240 V AC/DC (automatic adaption to +UB) | |
| Power consumption | 3 VA | |
| Output | ||
| Switching type | light/dark on selectable programmable | |
| Signal output | 1 relay output, 1 alternator | |
| Switching voltage | max. 240 V AC | |
| Switching current | max. 2 A | |
| Switching frequency | 10 Hz | |
| Response time | 50 ms | |
| Timer function | ON delay (GAN), OFF delay (GAB), one shot (IAB), programmable, adjustment range 0.1...10 s | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | cULus | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | -20... 75 °C (-4... 167 °F) | |
| Mechanical specifications | ||
| Housing width | 26.8 mm | |
| Housing height | 91 mm | |
| Housing depth | 67.6 mm | |
| Degree of protection | IP65 | |
| Connection | terminal compartment | |
| Material | ||
| Housing | Terluran® GV15 | |
| Optical face | glass | |
| Mass | 180 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 10.0.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC001821 |
| ETIM 8.0 | EC001821 |
| ETIM 7.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
