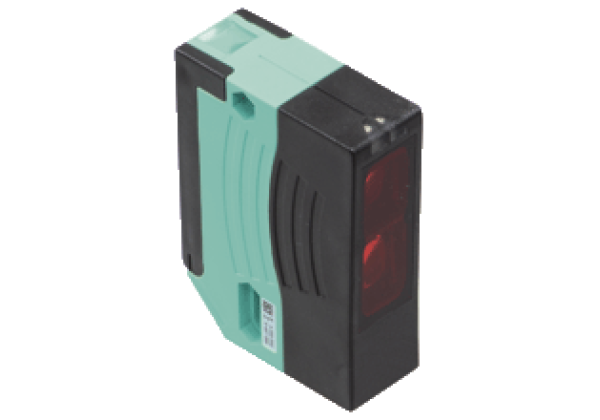

Retroreflective sensor RLK29-55/59/116
Brand: Pepperl+Fuchs
Code: RLK29-55/59/116
Robust, compact photoelectric sensor for single-beam gate protection, Not sensitive to ambient light, even with energy saving lamps, Tamper-proof, no operating controls, Version for universal voltages, Relay output, Light source: LED, Light type: modulated visible red light , 640 nm, Operating voltage: 24... 230 V AC/DC, Signal output: Relay, 1 alternator
Datasheet excerpt: Technical data of RLK29-55/59/116
| Product Description |
|---|
| Robust, compact, long range photoelectric sensors for detecting people, objects and vehicles |
| General specifications | ||
|---|---|---|
| Effective detection range | 0... 12 m | |
| Reflector distance | 0.04... 12 m | |
| Threshold detection range | 14 m | |
| Reference target | H85-2 reflector | |
| Light source | LED | |
| Light type | modulated visible red light , 640 nm | |
| Diameter of the light spot | approx. 35 mm at a distance of 12 m | |
| Opening angle | ± 1 ° | |
| Ambient light limit | 90000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 1460 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Function indicator | LED red illuminates: when beam is free flashes: when level falls below function reserve off: when beam is interrupted | |
| Electrical specifications | ||
| Operating voltage | 24... 230 V AC/DC | |
| Ripple | 10 % | |
| No-load supply current | ≤ 8.5 mA | |
| Power consumption | 0.2 W at 24 V DC , 1.8 W at 230 V AC 3 VA | |
| Output | ||
| Switching type | dark-on | |
| Signal output | Relay, 1 alternator | |
| Switching voltage | 230 V AC | |
| Switching current | max. 2 A | |
| Switching frequency | 7 Hz | |
| Response time | 50 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| CE conformity | yes | |
| UL approval | cULus Listed Caution: This equipment is considered as open-type equipment. It must be mounted within an enclosure, that is suitably designed for protection against internal fire and personal injury resulting from accessibility to live parts according UL 508. | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | -20... 60 °C (-4... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | terminal compartment | |
| Material | ||
| Housing | Plastic ABS, flame resistant | |
| Optical face | Plastic pane | |
| Mass | 100.7 g | |
| Note | Safety fuse ≤ 2 A (slow-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly. | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 9.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
