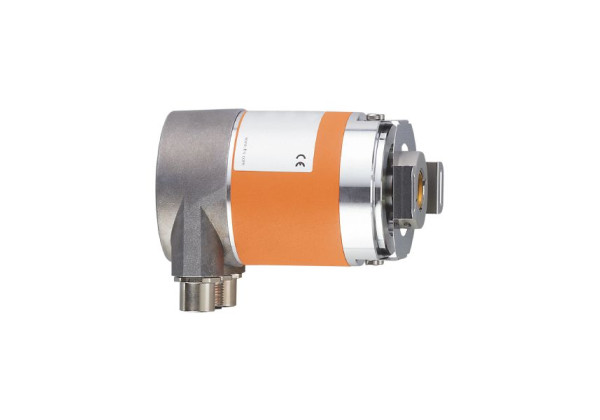

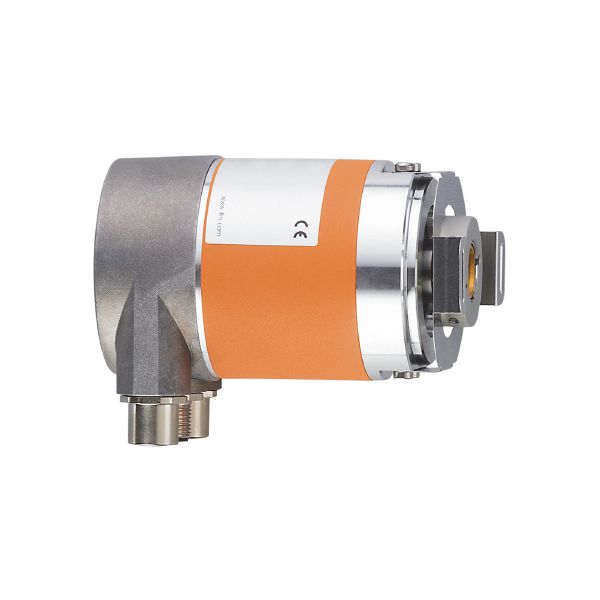

RM3010 - efector400-RM-0025-D24/E-U
Brand: IFM Electronic
Code: RM3010
- For precise position, speed, angular and linear measurement
- Direct output of the values via PROFINET interface
- Robust housing for use in harsh industrial environments
- High shock and vibration resistance
- Easy wiring and programming
Product characteristics
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|---|
| Communication interface | ProfiNet-IO; PROFINET encoder profile V4.2 |
| Shaft design | hollow shaft open to one side |
| Shaft diameter [mm] | 12 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | multiturn |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 100; ((24 V)) |
| Reverse polarity protection | yes |
Outputs
| Short-circuit protection | yes |
|---|---|
| Code | binary |
Measuring/setting range
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|
Accuracy / deviations
| Accuracy [°] | 0.0439 |
|---|
| Accuracy [°] | 0.022 |
|---|
Software / programming
| Parameter setting options | resolution per revolution; total resolution; direction of rotation; preset value; provision of a speed value; IP address; MRP; MRPD; rotational axis |
|---|---|
| Addressing | Software |
Interfaces
| Communication interface | ProfiNet-IO; PROFINET encoder profile V4.2 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Max. relative air humidity [%] | 98; (condensation not permissible) |
| Protection | IP 67; (on the housing: IP 67; on the shaft: IP 67) |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Continuous shock resistance |
| ||
| Vibration resistance |
| ||
| MTTF [years] | 95 |
Mechanical data
| Weight [g] | 601 | |
|---|---|---|
| Dimensions [mm] | Ø 58.5 / L = 98 | |
| Materials | aluminium; clamping ring: brass | |
| Max. revolution, mechanical [U/min] | 3000 | |
| Shaft design | hollow shaft open to one side | |
| Shaft diameter [mm] | 12 | |
| Shaft material |
| |
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 110 | |
| Fixing flange | Stator coupling |
Electrical connection - Ethernet
| Connector: 1 x M12; coding: D |
Electrical connection - power supply
| Connector: 1 x M12; coding: A |
