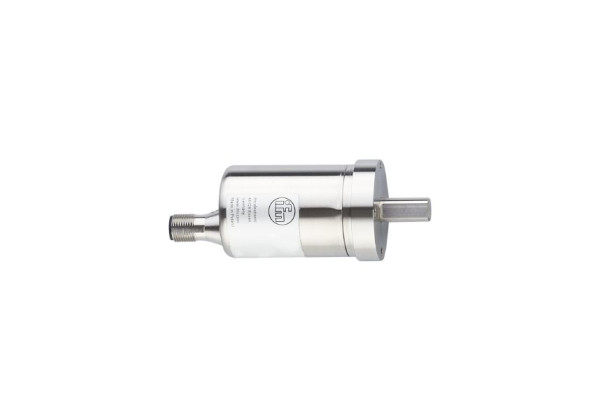

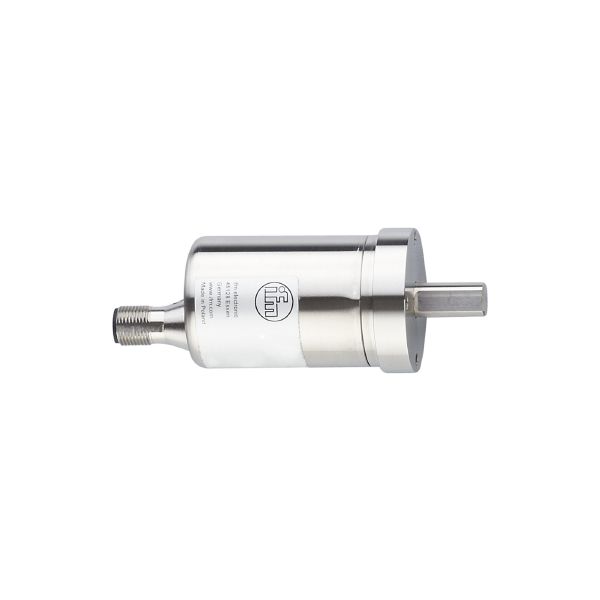

RM9010 Absolute multiturn encoder with solid shaft RMS0024-C24/UT
Brand: IFM Electronic
Code: RM9010
- High protection rating for the requirements of the food and beverage industry
Product characteristics
| Resolution | 4096 steps; 4096 revolutions; 24 bit |
|---|---|
| Communication interface | CAN |
| Shaft design | solid shaft |
| Shaft diameter [mm] | 10 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | multiturn |
Electrical data
| Operating voltage [V] | 9...30 DC |
|---|---|
| Current consumption [mA] | < 100; ((10 V DC) ; ≤ 50 (24 V DC)) |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Short-circuit protection | yes |
|---|---|
| Code | binary |
Measuring/setting range
| Resolution | 4096 steps; 4096 revolutions; 24 bit |
|---|
Accuracy / deviations
| Accuracy [°] | 0.08 |
|---|
Software / programming
| Parameter setting options | CAN parameter; scaling; preset; Baud rate; direction of rotation; Node ID |
|---|
Interfaces
| Communication interface | CAN |
|---|
| Protocol | CANopen | ||
|---|---|---|---|
| Factory settings |
| ||
| Version | DSP - 406 |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 68; IP 69K |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
| ||
| MTTF [years] | 240 |
Mechanical data
| Weight [g] | 469 | |
|---|---|---|
| Dimensions [mm] | Ø 42 / L = 107.9 | |
| Materials | flange: stainless steel (1.4404 / 316L); housing: stainless steel (1.4404 / 316L) | |
| Max. revolution, mechanical [U/min] | 6000 | |
| Max. starting torque [Nm] | 5 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 10 | |
| Shaft material |
| |
| Max. shaft load axial (at the shaft end) [N] | 180 | |
| Max. shaft load radial (at the shaft end) [N] | 180 | |
| Fixing flange | synchro-flange |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Connector: 1 x M12, axial; coding: A; Moulded body: stainless steel (316 / 1.4401) |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RM9010-01 — 12.07.2017 —
