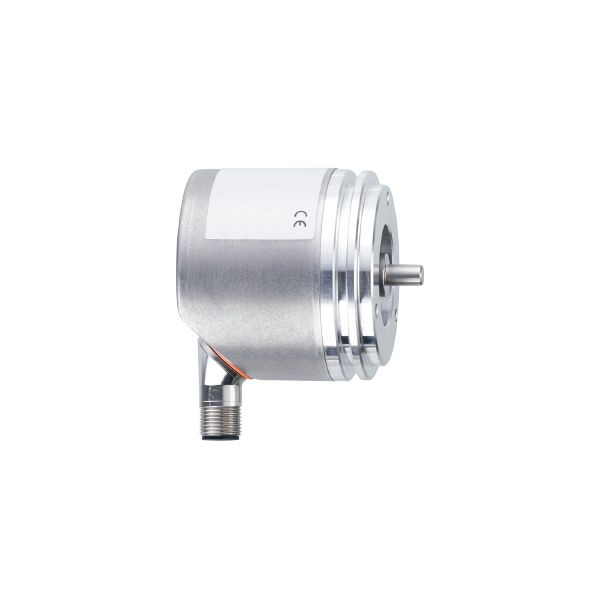

RMU200 analogue 13 bit multiturn encoder with 0...10 V output RMU06SVU513--bANU
Brand: IFM Electronic
Code: RMU200
- For precise position, speed, angular and linear measurement
- Analogue output 0-10 V with 13 bit total resolution
- Configurable measuring range via pin connection
- Dead zone indication if scaling range is exceeded / not reached
- High shock and vibration resistance thanks to magnetic sensing principle
Product characteristics
| Shaft design | solid shaft |
|---|---|
| Shaft diameter [mm] | 6 |
Application
| Function principle | absolute |
|---|---|
| Detection system | magnetic |
Electrical data
| Operating voltage [V] | 8...30 DC |
|---|---|
| Current consumption [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 500 |
| Settling time [ms] | 32 |
| Max. revolution electrical [U/min] | 12000 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Number of analogue outputs | 1 |
|---|---|
| Analogue voltage output [V] | 0...10 |
| Min. load resistance [Ω] | 5000 |
| Short-circuit protection | yes |
Accuracy / deviations
| Accuracy | 10 V ± 10 mV; (accuracy INL: ± 0.1) |
|---|---|
| Linearity deviation | ± 0,15 % FSO |
Software / programming
| Parameter setting options | start position; end position; central position |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Max. relative air humidity [%] | 95; (condensation not permissible) |
| Protection | IP 65; (on the housing: IP67) |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
| ||
| MTTF [years] | 258 | ||
| UL approval |
|
Mechanical data
| Weight [g] | 347.5 | |
|---|---|---|
| Dimensions [mm] | Ø 58 / L = 63.5 | |
| Materials | flange: aluminium; housing: stainless steel (1.4521 / 444) | |
| Max. revolution, mechanical [U/min] | 12000 | |
| Max. starting torque [Nm] | 1 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 6 | |
| Shaft material |
| |
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 60 | |
| Fixing flange | synchro-flange |
Electrical connection - plug
| Connector: 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (316 / 1.4401); Maximum cable length: 100 m |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RMU200-00 — 17.03.2021 —
