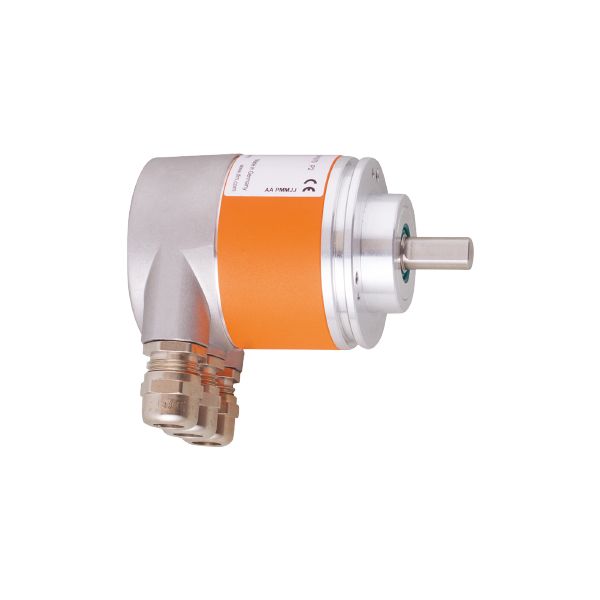

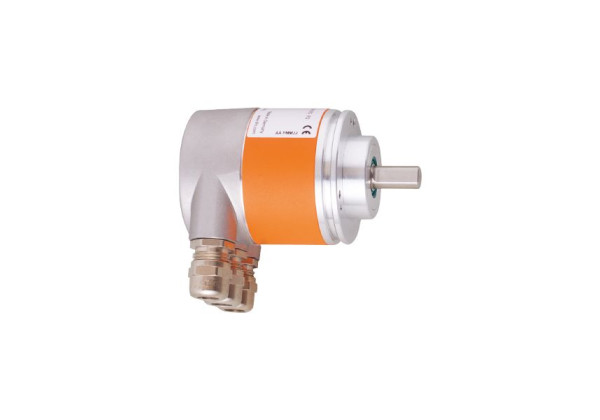

RN3001 - efector400-RMK0013-E24/E
Brand: IFM Electronic
Code: RN3001
- For precise position, speed, angular and linear measurement
- Direct output of the values via PROFIBUS interface
- Robust housing for use in harsh industrial environments
- High shock and vibration resistance
- Easy wiring and programming
Product characteristics
| Resolution | 8192 steps; 13 bit |
|---|---|
| Communication interface | PROFIBUS DP |
| Shaft design | solid shaft |
| Shaft diameter [mm] | 10 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | singleturn |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 100; ((24 V)) |
| Reverse polarity protection | yes |
Outputs
| Code | binary |
|---|
Measuring/setting range
| Resolution | 8192 steps; 13 bit |
|---|
Software / programming
| Parameter setting options | counting direction of the code values; Resolution; zero point; limit switches HI and LO; motion indicator; separation multiturn/singleturn |
|---|---|
| Diagnostic functions | alarms; warnings; status; serial number of the encoder |
| Addressing | address selector switch; 0...126 |
Interfaces
| Communication interface | PROFIBUS DP |
|---|
| Transmission standard | DPV2 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Max. relative air humidity [%] | 98 |
| Protection | IP 67; (on the housing: IP 67; on the shaft: IP 67) |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
| ||
| MTTF [years] | 13 |
Mechanical data
| Weight [g] | 553.5 | |
|---|---|---|
| Dimensions [mm] | Ø 58 / L = 99 | |
| Materials | aluminium | |
| Max. revolution, mechanical [U/min] | 12000 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 10 | |
| Shaft material |
| |
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 110 | |
| Fixing flange | clamping flange |
Electrical connection
| terminal strip in the terminal chamber: |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RN3001-00 — 07.05.2014 —
