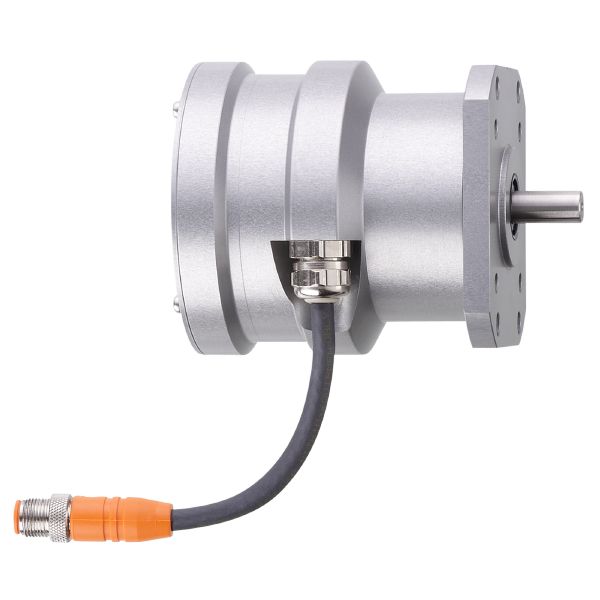

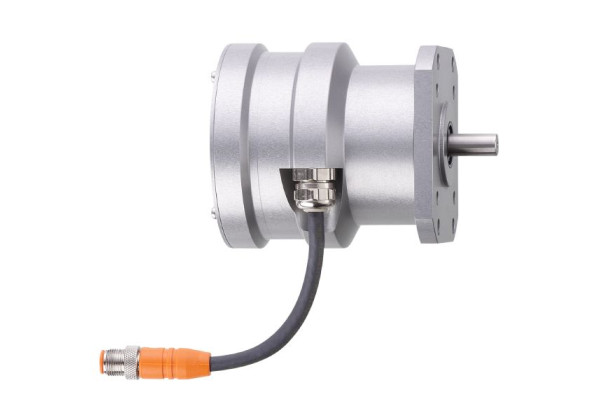

RN6066 absolute singleturn single shaft encoder RN-8192-S24/S

Code: RN6066

Product characteristics

Communication interface	SSI data interface
Shaft design	solid shaft
Shaft diameter [mm]	10

Application

Function principle	absolute
Revolution type	singleturn

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 100

Inputs

Inputs	reversal of direction of rotation; reset to zero

Outputs

Code	Gray code; (increasing code values when turned clockwise (seen on the shaft))
Code signal	Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signals, data, and data (inv.)

Interfaces

Communication interface	SSI data interface

Operating conditions

Ambient temperature [°C]	-40...100
Max. relative air humidity [%]	98
Protection	IP 67

Tests / approvals

EMC

EN IEC 61000-6-4	radiation of interference / industrial environments
EN IEC 61000-6-2	immunity / industrial environments

Shock resistance

EN 60068-2-27

< 50 g 6 ms

Vibration resistance

EN 60068-2-6

< 10 g / 55...2000 Hz

MTTF [years]

289

Mechanical data

Weight [g]

1113.3

Dimensions [mm]

Ø 89 / L = 116

Materials

flange: aluminium anodised; housing: aluminium anodised

Max. revolution, mechanical [U/min]

6000

Max. starting torque [Nm]

Reference temperature torque [°C]

Shaft design

solid shaft

Shaft diameter [mm]

Shaft material

stainless steel (1.4305 / 303)

Max. shaft load axial (at the shaft end) [N]

Max. shaft load radial (at the shaft end) [N]

110

Remarks

Wires/pins not connected (n.c.) must not be used.

Electrical connection

Connection	Cable: 0.15 m, PUR
Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

1	clock
2	data
	t1 ≤ 0.5 µs clock: 1 MHz
	t2 < 0.4 µs
	t3 = 13...20 µs
	T = 1...10 µs
	13 Bit without parity bit

Other data

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RN6066-00 — 15.05.2020 —
