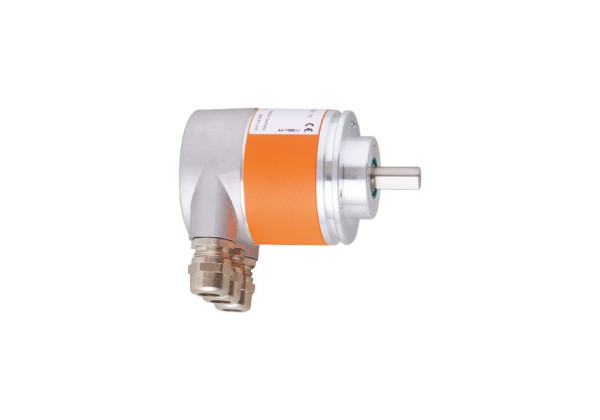

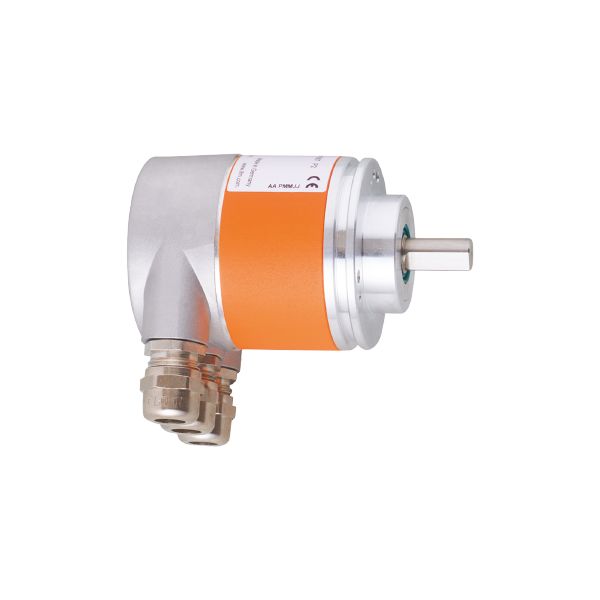

RN7012 - efector400-RMK0013-C24/E
Brand: IFM Electronic
Code: RN7012
- For precise position, speed, angular and linear measurement
- Direct output of the values via CANopen interface
- Robust housing for use in harsh industrial environments
- High shock and vibration resistance
- Easy wiring and programming
Product characteristics
| Resolution | 8192 steps; 13 bit |
|---|---|
| Communication interface | CAN |
| Shaft design | solid shaft |
| Shaft diameter [mm] | 10 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | singleturn |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 100; ((10 V DC); 60 (24 V DC)) |
| Reverse polarity protection | yes |
Outputs
| Code | binary |
|---|
Measuring/setting range
| Resolution | 8192 steps; 13 bit |
|---|
Software / programming
| Parameter setting options | CAN parameter; scaling; preset; Baud rate; direction of rotation; Node ID |
|---|---|
| Addressing | address selector switch; 0...126 |
Interfaces
| Communication interface | CAN | ||
|---|---|---|---|
| Factory settings |
|
| Protocol | CANopen; DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0 | ||
|---|---|---|---|
| Factory settings |
|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Max. relative air humidity [%] | 98 |
| Protection | IP 65; (on the housing: IP 65; on the shaft: IP 64) |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
| ||
| MTTF [years] | 13 |
Mechanical data
| Weight [g] | 555 | |
|---|---|---|
| Dimensions [mm] | Ø 58 / L = 99 | |
| Materials | aluminium | |
| Max. revolution, mechanical [U/min] | 12000 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 10 | |
| Shaft material |
| |
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 110 | |
| Fixing flange | clamping flange |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| terminal strip in the terminal chamber: |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RN7012-00 — 13.11.2013 —
