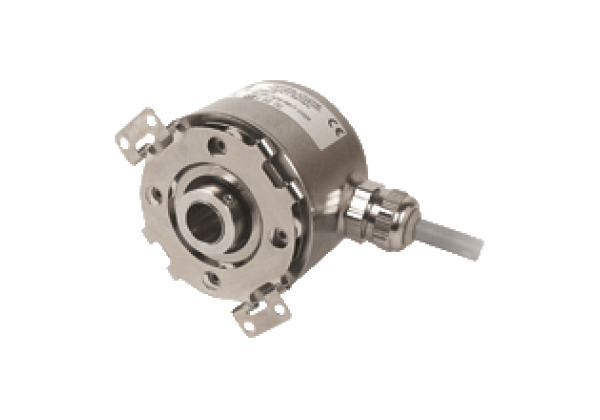

Incremental rotary encoder RSI58O-02YK1R61T-01024
Brand: Pepperl+Fuchs
Code: RSI58O-02YK1R61T-01024
Resistant to salt water, Industrial standard housing ∅58 mm, 1024 ppr, Recessed hollow shaft, 10 V... 30 V with short-circuit proof push-pull output, Output type: push-pull, incremental
Datasheet excerpt: Technical data of RSI58O-02YK1R61T-01024
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | 1024 | |
| Functional safety related parameters | ||
| MTTFd | 140 a | |
| Mission Time (TM) | 20 a | |
| L10h | 2 E+9 | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| No-load supply current | max. 60 mA | |
| Output | ||
| Output type | push-pull, incremental | |
| Voltage drop | < 4.4 V | |
| Load current | max. per channel 40 mA , short-circuit prtected (not with Ub), reverse polarity protected | |
| Output frequency | max. 200 kHz | |
| Rise time | 400 ns | |
| Connection | ||
| Cable | ∅7.8 mm, 6 x 2 x 0.14 mm2, 1 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65, IP66, IP68 | |
| Climatic testing | ||
| Static climatic testing | DIN EN 60068-2-78 , no moisture condensation | |
| Cyclic climatic testing | DIN EN 60068-2-30 55 °C, 6 cycles | |
| Salt spray test | DIN EN 60068-2-52 , 672 h | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | -40... 60 °C (-40... 140 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | aluminum, coated, salt water resistant | |
| Flange | aluminum, coated, salt water resistant | |
| Shaft | stainless steel 1.4404 / AISI 316L | |
| Mass | approx. 280 g | |
| Rotational speed | max. 100 min -1 | |
| Moment of inertia | ≤ 35 gcm2 | |
| Starting torque | ≤ 4.5 Ncm | |
| Shaft load | ||
| Angle offset | 1 ° | |
| Axial offset | max. 1 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 10.0.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 5.1 | 27270501 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
