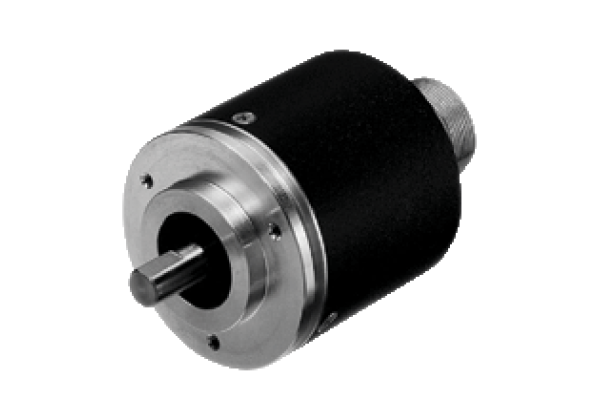

Incremental rotary encoder RVI50N-09B**A*6
Brand: Pepperl+Fuchs
Code: RVI50N-09B**A*6
Incremental rotary encoder, Sturdy and compact design, Up to 2500 ppr, 5 V with RS-422 interface, Enclosure type: 50 mm, Type of shaft: Solid shaft, Interface: RS-422, Detection type: photoelectric sampling, Output type: RS 422, incremental
Datasheet excerpt: Technical data of RVI50N-09B**A*6
| Product Description |
|---|
| Incremental rotary encoder |
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | max. 2500 | |
| Electrical specifications | ||
| Operating voltage | 5 V DC ± 5 % | |
| No-load supply current | max. 150 mA | |
| Output | ||
| Output type | RS 422, incremental | |
| Load current | max. per channel 20 mA , conditionally short-circuit proof | |
| Output frequency | max. 160 kHz | |
| Rise time | 100 ns | |
| De-energized delay | 100 ns | |
| Connection | ||
| Connector | type 9416 (M23), 12-pin or type 42306 (M16), 6-pin | |
| Cable | ∅6 mm, 5 x 0.38 mm2, 0.5 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP50 | |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | ||
| Glass disk | -20... 70 °C (-4... 158 °F) | |
| Plastic disk | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | ||
| Glass disk | -40... 70 °C (-40... 158 °F) | |
| Plastic disk | -40... 60 °C (-40... 140 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | powder coated aluminum | |
| Flange | 3.1645 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 220 g | |
| Rotational speed | max. 10000 min -1 | |
| Moment of inertia | ≤ 5 gcm2 | |
| Starting torque | ≤ 1.5 Ncm | |
| Shaft load | ||
| Axial | 30 N | |
| Radial | 50 N | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 10.0.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 5.1 | 27270501 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
