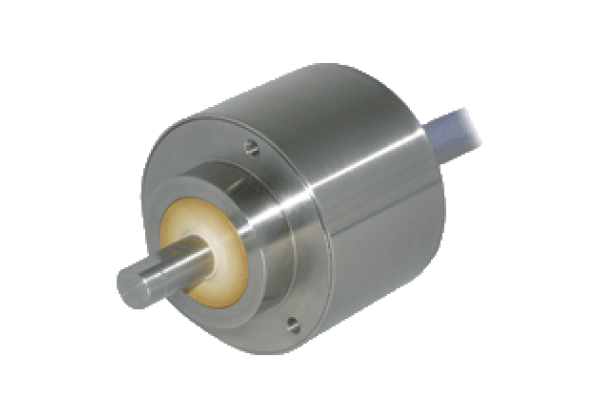

Incremental rotary encoder RVI58L
Brand: Pepperl+Fuchs
Code: RVI58L
Stainless steel version, especially suitable for applications in the food industry, Cleaning compatible according to EHEDG (European Hygienic Engineering & Design Group), Approval for ECOLAB detergents, IP69K Protected, Industrial standard housing ∅58 mm, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: push-pull, incremental or RS-422, incremental, Application: hygienic design, Detection type: photoelectric sampling
Datasheet excerpt: Technical data of RVI58L
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | max. 25000 , see table | |
| Functional safety related parameters | ||
| MTTFd | 200 a | |
| Mission Time (TM) | 25 a | |
| L10 | 70 E+9 at 6000 rpm | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC or 5 V DC | |
| No-load supply current | max. 100 mA | |
| Output | ||
| Output type | push-pull, incremental or RS 422, incremental | |
| Load current | max. per channel 40 mA , short-circuit prtected (not with Ub), reverse polarity protected | |
| Output frequency | max. 600 kHz | |
| Rise time | 170 ns | |
| Connection | ||
| Cable | 2 m fixed cable | |
| Approvals and certificates | ||
| ECOLAB | material compatibility attested for: P3-topactive DES P3-topax 19 P3-topax 56 P3-topax 66 P3-topax 91 de-mineralized water as zero value | |
| Ambient conditions | ||
| Operating temperature | -20... 80 °C (-4... 176 °F) | |
| Storage temperature | -20... 80 °C (-4... 176 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 / IP69K | |
| Material | ||
| Housing | stainless steel V4A | |
| Flange | stainless steel V4A | |
| Shaft | stainless steel V4A | |
| Mass | approx. 600 g | |
| Rotational speed | max. 3600 min -1 | |
| Starting torque | approx. 1 Ncm at room temperature | |
| Shaft load | ||
| Axial | max. 100 N | |
| Radial | max. 100 N | |
| Life span | ≥ 1 x 109 revolutions (max. shaft loading) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 10.0.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 5.1 | 27270501 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
