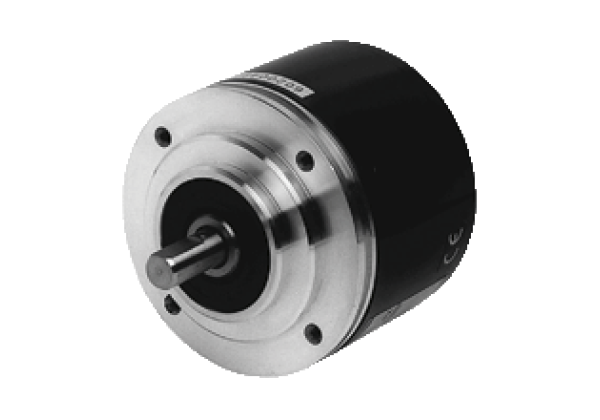

Incremental rotary encoder RVI78
Brand: Pepperl+Fuchs
Code: RVI78
Sturdy design, Up to 5000 ppr, 10 V... 30 V with short-circuit proof push-pull output, Enclosure type: 78 mm, Type of shaft: Solid shaft, Interface: push-pull, incremental, Output type: push-pull, incremental
Datasheet excerpt: Technical data of RVI78
| General specifications | ||
|---|---|---|
| Pulse count | max. 5000 | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| No-load supply current | max. 80 mA | |
| Output | ||
| Output type | push-pull, incremental | |
| Voltage drop | < 4 V | |
| Load current | max. per channel 40 mA , short-circuit protected, reverse polarity protected | |
| Output frequency | max. 100 kHz | |
| Rise time | 250 ns | |
| De-energized delay | 250 ns | |
| Connection | ||
| Connector | type 42306 (M16), 6-pin | |
| Cable | ∅6 mm, 5 x 0.38 mm2, 2 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Ambient conditions | ||
| Operating temperature | ||
| Glass disk | -20... 70 °C (-4... 158 °F) | |
| Plastic disk | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | ||
| Glass disk | -40... 70 °C (-40... 158 °F) | |
| Plastic disk | -40... 60 °C (-40... 140 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | powder coated aluminum | |
| Flange | 3.1645 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 630 g | |
| Rotational speed | max. 6000 min -1 | |
| Moment of inertia | 100 gcm2 | |
| Starting torque | ≤ 1.5 Ncm | |
| Shaft load | ||
| Axial | 50 N | |
| Radial | 100 N | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 10.0.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 5.1 | 27270501 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
