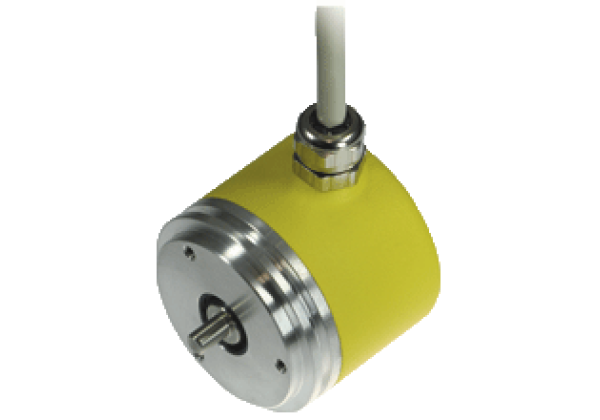

Incremental rotary encoder RVS58S-*******Z
Brand: Pepperl+Fuchs
Code: RVS58S-*******Z
Safe rotary encoder, thanks to integrated functional safety, Usable up to SIL 3 acc. to IEC 61508 , TÜV certified, Suitable as motor feedback system for safe drives in accordance with IEC 61800-5-2, Incremental encoder with sin/cos interface, Output type: sine / cosine
Datasheet excerpt: Technical data of RVS58S-*******Z
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | 1024 and 2048 | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Performance level (PL) | PL e | |
| MTTFd | 709 a | |
| Mission Time (TM) | 10 a | |
| PFHd | 4.35 E-9 1/h | |
| PFD | 3.1 E-5 | |
| L10 | 70 E+9 at 6000 rpm | |
| Diagnostic Coverage (DC) | 98.9 % | |
| Electrical specifications | ||
| Operating voltage | 5 V DC ± 5 % | |
| No-load supply current | max. 70 mA | |
| Output | ||
| Output type | sine / cosine | |
| Amplitude | 1 Vss ± 10 % | |
| Load current | max. per channel 10 mA , short-circuit protected, reverse polarity protected | |
| Output frequency | max. 200 kHz (3 dB limit) | |
| Connection | ||
| Cable | ∅7.8 mm, 6 x 2 x 0.14 mm2, 1 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65 | |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | DIN EN 61000-6-2 , advanced testing level to IEC 61326-3-1 EN 61326-3-1:2008 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 55 ... 2000 Hz | |
| Functional safety | IEC 61508:2010 (SIL3) EN 62061:2005/A2:2015 EN/ISO 13849-1:2015 IEC 61800-5-2:2016 Suitable up to SIL 3, PL e depending from configuration, see instruction leaflet | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| TÜV approval | Cert. no. Z10 068273 0003 | |
| Ambient conditions | ||
| Operating temperature | -5... 80 °C (23... 176 °F) , movable cable -20... 80 °C (-4... 176 °F), fixed cable | |
| Storage temperature | -40... 100 °C (-40... 212 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | powder coated aluminum | |
| Flange | 3.1655 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 350 g | |
| Rotational speed | max. 12000 min -1 | |
| Moment of inertia | ≤ 25 gcm2 | |
| Starting torque | ≤ 1.5 Ncm | |
| Shaft load | ||
| Axial | 40 N at max. 6000 min-1 10 N at max. 12000 min-1 | |
| Radial | 60 N at max. 6000 min-1 20 N at max. 12000 min-1 | |
