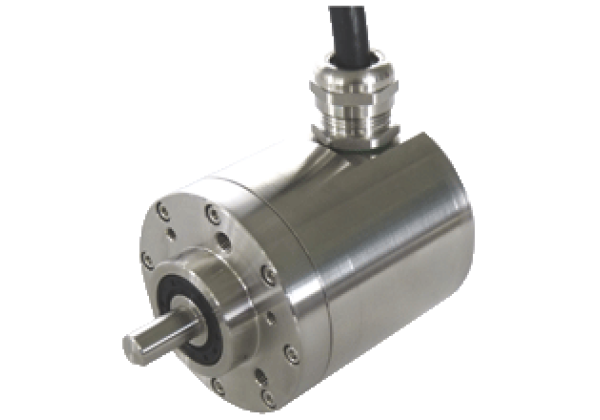

Incremental rotary encoder RVS70E
Brand: Pepperl+Fuchs
Code: RVS70E
1024 or 2048 signal periods, Flameproof enclosure, Worldwide certification: ATEX, IECEx, KOSHA, CCC, Degree of protection IP66 / IP67, High shaft load capacity, Enclosure type: 70 mm, Type of shaft: Solid shaft, Interface: sine / cosine, Application: Ex protection, Detection type: photoelectric sampling, Output type: sine / cosine
Datasheet excerpt: Technical data of RVS70E
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Device type | Incremental rotary encoder | |
| Pulse count | 1024 and 2048 | |
| Functional safety related parameters | ||
| MTTFd | 140 a | |
| L10 | 1.6 E+9 at 3000 rpm | |
| Electrical specifications | ||
| Operating voltage | 5 V ± 5 % | |
| No-load supply current | max. 70 mA | |
| Output | ||
| Output type | sine / cosine | |
| Amplitude | 1 Vss ± 10 % | |
| Load current | max. per channel 20 mA , short-circuit protected , Reverse polarity protection | |
| Output frequency | max. 200 kHz (3 dB limit) | |
| Connection | ||
| Cable | ∅ 10.2 mm, Radox 9 x 0.5 mm2 | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP66 DIN EN 60529, IP67 | |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| IECEx approval | ||
| Equipment protection level Gb | IECEx ZLM 14.0003X | |
| Equipment protection level Db | IECEx ZLM 14.0003X | |
| ATEX approval | ||
| Equipment protection level Gb | ZELM 14 ATEX 0519 X | |
| Equipment protection level Db | ZELM 14 ATEX 0519 X | |
| CCC approval | ||
| Hazardous Location | 2020322314001105 | |
| KCC approval | ||
| Hazardous Location | 19-AV4BO-0390 and 19-AV4BO-0391 | |
| Ambient conditions | ||
| Ambient temperature | -40... 70 °C (-40... 158 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Material | ||
| Combination 1 | housing: anodized aluminum flange: anodized aluminum shaft: Stainless steel 1.4401 / AISI 316 | |
| Combination 2 (Inox) | housing: Stainless steel 1.4404 / AISI 316L flange: Stainless steel 1.4404 / AISI 316L shaft: Stainless steel 1.4401 / AISI 316 | |
| Mass | approx. 1300 g (combination 1) approx. 2300 g (combination 2) | |
| Rotational speed | max. 6000 min -1 | |
| Moment of inertia | 400 gcm2 | |
| Starting torque | < 5 Ncm | |
| Shaft load | ||
| Axial | 110 N | |
| Radial | 150 N | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 10.0.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 5.1 | 27270501 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
