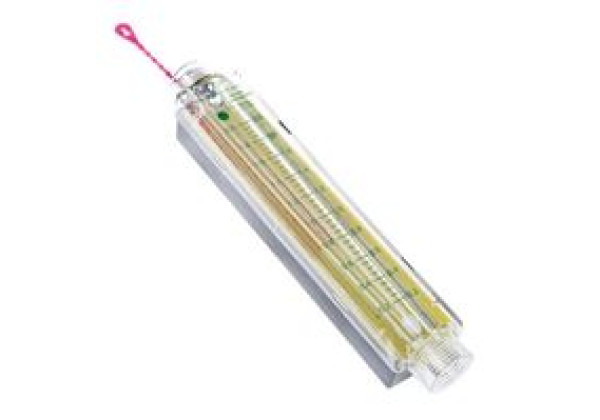

S.800001 Parker Variable Area Flow Meter, 0.2 L/min → 2 L/min, S Series
Brand: Parker
Code: S.800001
Media Monitored = Liquid Device Type = Variable Area Minimum Flow Rate = 0.2 L/min Maximum Flow Rate = 2 L/min Pipe Diameter Range = 3/4 in Connection Type = 3/4 BSP Maximum Pressure = 10bar Maximum Operating Temperature = +60°C Series = S Liquid Flow Indicator. Variable flow indicators with a float inside an outer graduated flow scale on the viewing sleeve. All utilise the technique of differential pressure across a piston which, as the flow increases, moves the piston against a calibrated spring.. Accuracy ±2% Repeatability ±1% 10 bar operating pressure 60°C maximum operating temperature Must be installed in a vertical plane for maximum accuracy |
Check out any spare parts and components from the Parker catalog!
Do you want to order a S.800001 Parker Variable Area Flow Meter, 0.2 L/min → 2 L/min, S Series with code: S.800001?
Leave your request on our website for immediate assistance!
