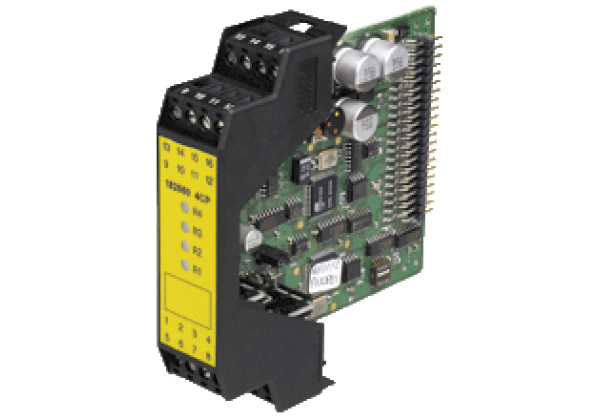

Safety control unit module SB4 Module 4COP
Brand: Pepperl+Fuchs
Code: SB4 Module 4COP
Sensor module, 4 sensor channels, Single module for safety thru-beam sensors SLA12 and SLA29 and for 2 channel safety devices (emergency off), Micro-Controller controls, Operating mode can be selected by means of DIP switches, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Operating voltage: 24 V DC ± 20 % , via SB4 Housing
Datasheet excerpt: Technical data of SB4 Module 4COP
| Product Description |
|---|
| Safety control unit module |
| General specifications | ||
|---|---|---|
| Operating mode | ODER-Function | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Performance level (PL) | PL e | |
| Category | Cat. 4 | |
| Mission Time (TM) | 20 a | |
| Type | 4 | |
| Indicators/operating means | ||
| Function indicator | LED yellow (4x): indicator lamp channel 1... 4 | |
| Stability alarm indicator | LED yellow flashing: Indicator lamp channel 1... 4 | |
| Control elements | DIP switch | |
| Electrical specifications | ||
| Operating voltage | 24 V DC ± 20 % , via SB4 Housing | |
| Input | ||
| Activation current | approx. 7 mA | |
| Conformity | ||
| Functional safety | ISO 13849-1 ; EN 61508 part1-4 | |
| Product standard | EN 61496-1 | |
| Approvals and certificates | ||
| CE conformity | CE | |
| UL approval | cULus | |
| TÜV approval | TÜV | |
| Ambient conditions | ||
| Ambient temperature | 0... 50 °C (32... 122 °F) | |
| Storage temperature | -20... 70 °C (-4... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | screw terminals , lead cross section 0.2... 2 mm2 | |
| Material | ||
| Housing | Polyamide (PA) | |
| Mass | approx. 150 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 10.0.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 8.0 | 27243101 |
| ECLASS 5.1 | 27272790 |
| ETIM 9.0 | EC002538 |
| ETIM 8.0 | EC002538 |
| ETIM 7.0 | EC002538 |
| ETIM 6.0 | EC002538 |
| ETIM 5.0 | EC002538 |
| UNSPSC 12.1 | 46171620 |
