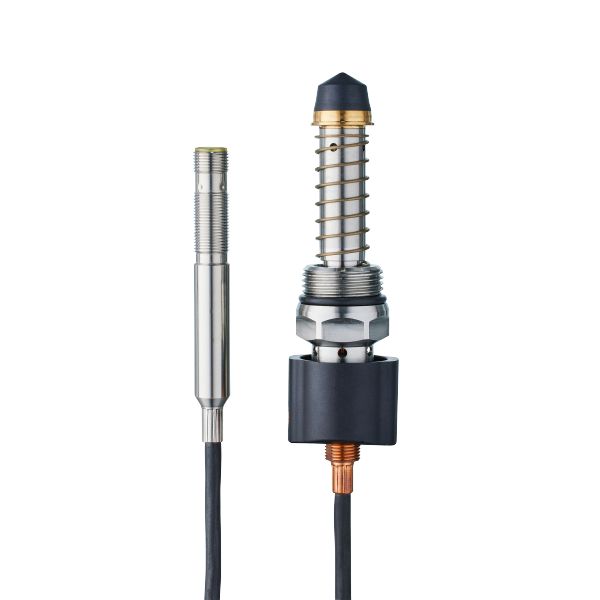

SBM613 - efector300-SBM34XKX10KG/O/US
Brand: IFM Electronic
Code: SBM613
- Suitable for water and glycol solutions
- Reliable backflow prevention with very fast response time
- For installation in a pipe section or a valve
Product characteristics
| Measuring range [l/min] | 0.3...25 |
|---|---|
| Process connection | G 3/4 |
Application
| Media | Liquids; water; glycol solutions | ||
|---|---|---|---|
| Medium temperature [°C] | 10...180 | ||
| Pressure rating [bar] | 15 | ||
| Pressure rating [Mpa] | 1.5 | ||
| Note on pressure rating |
|
Electrical data
| Operating voltage tolerance [%] | -15...10 |
|---|---|
| Operating voltage [V] | 24 DC; (to SELV/PELV) |
| Current consumption [mA] | < 35 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Output signal | analogue signal |
|---|---|
| Analogue current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Overload protection | yes |
Measuring/setting range
| Measuring range [l/min] | 0.3...25 |
|---|
Accuracy / deviations
| Repeatability [% of the final value] | 1 |
|---|---|
| Measuring error [% of the final value] | ± 5 |
Response times
| Response time [s] | < 0.01 |
|---|
Operating conditions
| Ambient temperature [°C] | 0...60 |
|---|---|
| Storage temperature [°C] | -15...80 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| Shock resistance |
| ||||
| Vibration resistance |
| ||||
| MTTF [years] | 1380 |
Mechanical data
| Weight [g] | 285 |
|---|---|
| Materials | brass white bronze coated; PPS; copper alloy; aluminium anodised; silicone; PEI |
| Materials (wetted parts) | stainless steel (316 / 1.4401); brass; PPS; O-ring: FKM |
| Tightening torque [Nm] | 15 |
| Process connection | G 3/4 |
| Switching cycles mechanical | 10 million |
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Cable: 0.3 m, silicone |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
Diagrams and graphs
| | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SBM613-03 — 13.04.2023 —
