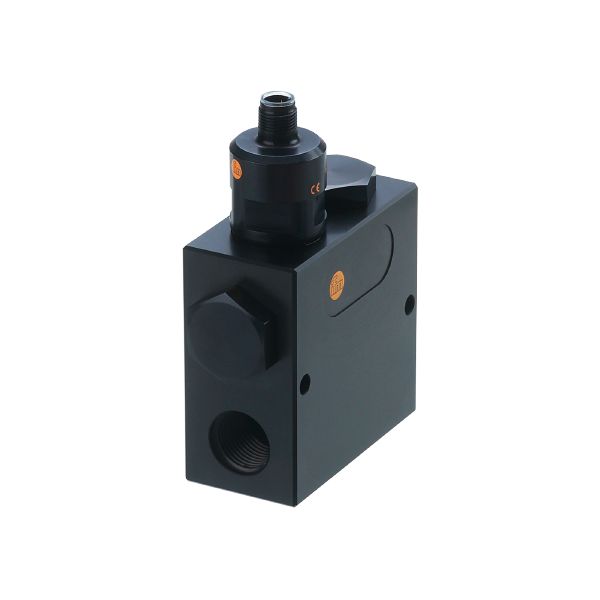

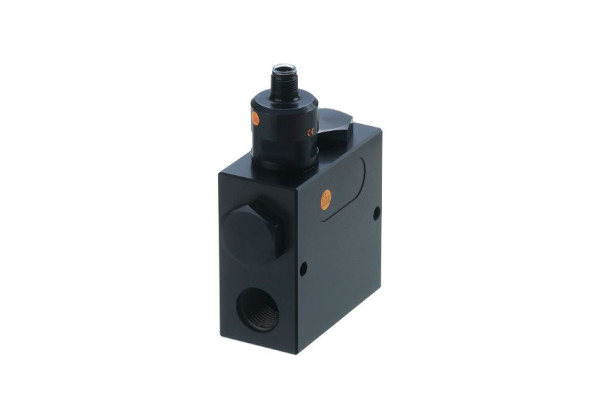

SBU924 - efector300-SBU12DI040KG/US
Brand: IFM Electronic
Code: SBU924
- Reliable volumetric flow monitoring of the internal cooling of the drill on machine tools
- With integrated backflow preventer
- Precise linearized analogue output
- Robust housing with very high pressure rating
- Very short response time
Product characteristics
| Measuring range [l/min] | 2...50 |
|---|---|
| Process connection | G 1/2 |
Application
| Application | machine tools; Internal cooling of drill |
|---|---|
| Media | Liquids; water; glycol solutions; coolants |
| Medium temperature [°C] | 0...60 |
| Pressure rating [bar] | 200 |
| Pressure rating [Mpa] | 20 |
Electrical data
| Operating voltage tolerance [%] | -15...10 |
|---|---|
| Operating voltage [V] | 24 DC; (to SELV/PELV) |
| Current consumption [mA] | 10 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Output signal | analogue signal |
|---|---|
| Analogue voltage output [V] | 0.5...10 |
| Min. load resistance [Ω] | 10000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Measuring/setting range
| Measuring range [l/min] | 2...50 |
|---|---|
| Flow range [l/min] | 75 |
Accuracy / deviations
| Repeatability [% of the final value] | 1 |
|---|---|
| Measuring error [% of the final value] | ± 5 |
Response times
| Response time [s] | < 0.01 |
|---|
Operating conditions
| Ambient temperature [°C] | 0...60 |
|---|---|
| Storage temperature [°C] | -15...80 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| Shock resistance |
| ||||
| Vibration resistance |
| ||||
| MTTF [years] | 15.78 |
Mechanical data
| Weight [g] | 742 |
|---|---|
| Materials | aluminium anodised; PA |
| Materials (wetted parts) | stainless steel (316 / 1.4401); brass; aluminium anodised; PU; O-ring: FKM |
| Process connection | G 1/2 |
| Switching cycles mechanical | 10 million |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| ||||
|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Diagrams and graphs
| | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SBU924-04 — 13.04.2023 —
