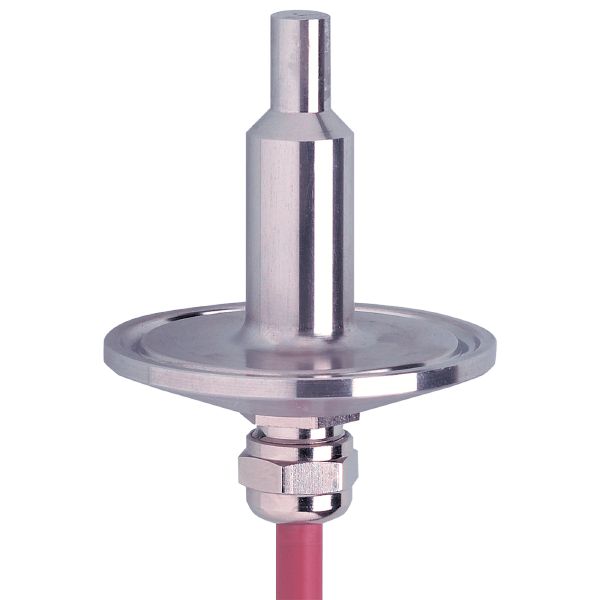

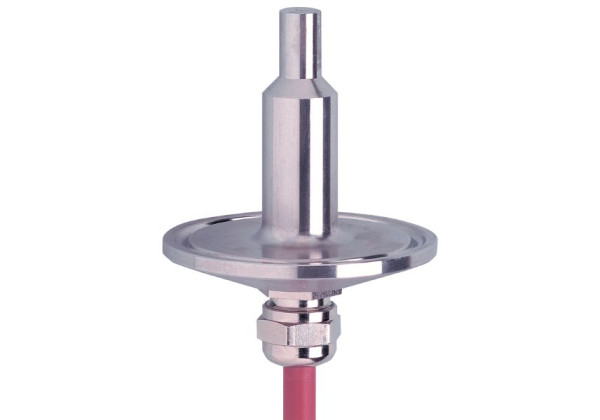

SF0516 - efector300-SFG14ZBB/6M

Code: SF0516

Reliable monitoring of liquids and gases in pipes
For connection to an evaluation unit
Wetted parts made of stainless steel
Hygienic design for the requirements of the food and beverage industry
Suitable for medium temperatures up to 120 °C

Product characteristics

Probe length L [mm]	42
Process connection	Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)

Application

Application	high-temperature range; hygienic applications
Pressure rating [bar]	30

Liquids

Application	high-temperature range; hygienic applications
Medium temperature [°C]	0...120

Gases

Medium temperature [°C]	0...100

Electrical data

Connection to control monitor	VS3000

Measuring/setting range

Probe length L [mm]	42

Liquids

Setting range [cm/s]	3...300
Greatest sensitivity [cm/s]	3...60

Gases

Setting range [cm/s]	200...2000
Greatest sensitivity [cm/s]	200...800

Accuracy / deviations

Temperature gradient [K/min]	15

Response times

Response time [s]	1...10

Liquids

Response time [s]	1...10

Gases

Response time [s]	1...10

Operating conditions

Protection	IP 67

Tests / approvals

Shock resistance

DIN IEC 68-2-27

40 g (11 ms)

Vibration resistance

DIN IEC 68-2-6

10 g (55...2000 Hz)

MTTF [years]

8648

Mechanical data

Weight [g]	485
Materials	stainless steel (1.4571/316Ti )
Materials (wetted parts)	stainless steel (1.4571/316Ti )
Process connection	Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)

Remarks

The 3-A qualification is only valid if adapters with 3-A qualification are used for installation.

Pack quantity

1 pcs.

Electrical connection

Connection	Cable: 6 m, silicone; Maximum cable length: 100 m; 5 x 0.34 mm²
