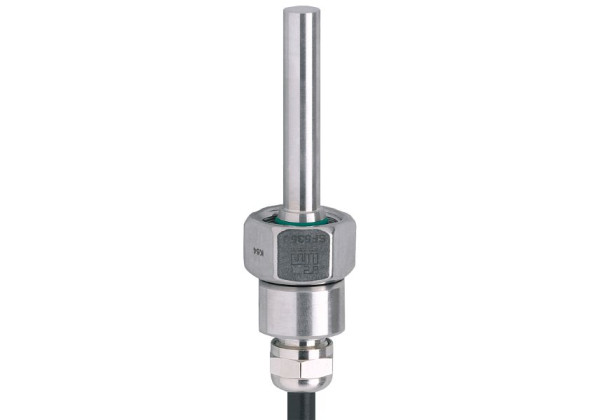

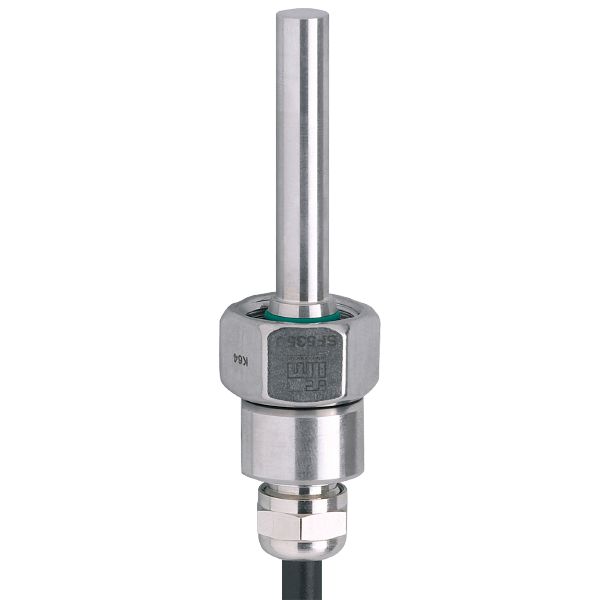

SF5350 - efector300-SFD10ADB /6M
Brand: IFM Electronic
Code: SF5350
- Reliable monitoring of liquids and gases in pipes
- For connection to an evaluation unit
- Very high pressure rating
- Simple process connection via adapter
- Robust design for use in harsh industrial environments
Product characteristics
| Probe length L [mm] | 45 |
|---|---|
| Process connection | M18 x 1,5 internal thread |
Application
| Application | high-temperature range |
|---|---|
| Media | Liquids; Gases |
| Medium temperature [°C] | -25...80 |
| Pressure rating [bar] | 300 |
Electrical data
| Connection to control monitor | VS3000 |
|---|
Measuring/setting range
| Probe length L [mm] | 45 |
|---|
| Setting range [cm/s] | 3...300 |
|---|---|
| Greatest sensitivity [cm/s] | 3...60 |
| Setting range [cm/s] | 200...3000 |
|---|---|
| Greatest sensitivity [cm/s] | 200...800 |
Accuracy / deviations
| Temperature gradient [K/min] | 300 |
|---|
Response times
| Response time [s] | 1...10 |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
| ||
| MTTF [years] | 8213 |
Mechanical data
| Weight [g] | 413.5 |
|---|---|
| Housing | for adapter |
| Dimensions [mm] | M18 x 1.5 |
| Thread designation | M18 x 1.5 |
| Materials | stainless steel (1.4404 / 316L) |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A |
| Process connection | M18 x 1,5 internal thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 6 m, PUR; Maximum cable length: 100 m; 5 x 0.34 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SF5350-00 — 05.11.2020 —
