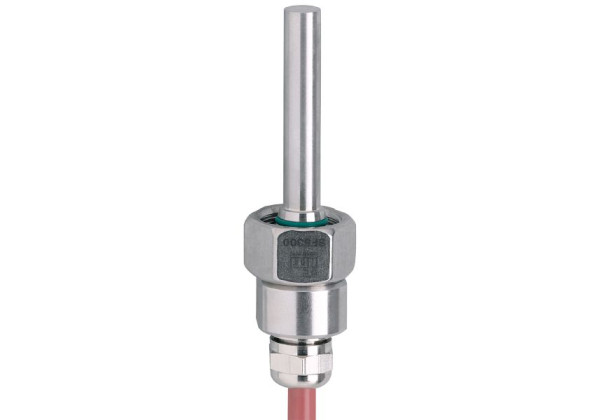

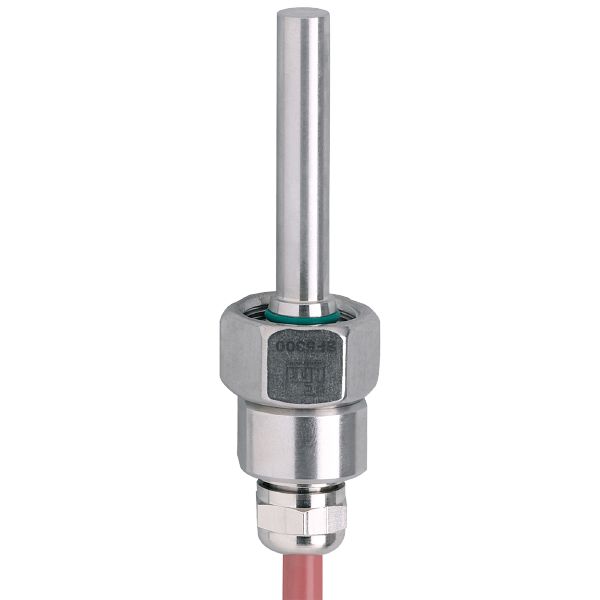

SF5800 - efector300-SFD10ZDT /6M

Code: SF5800

Reliable monitoring of liquids and gases in pipes
For connection to an evaluation unit
Suitable for medium temperatures up to 120 °C
Simple process connection via adapter
Titanium materials for contact with the medium for use in aggressive media

Product characteristics

Probe length L [mm]	45
Process connection	M18 x 1,5 internal thread

Application

Application	high-temperature range
Media	Liquids; Gases; aggressive media
Pressure rating [bar]	100

Liquids

Medium temperature [°C]	0...120

Gases

Medium temperature [°C]	0...100

Electrical data

Connection to control monitor	VS3000

Measuring/setting range

Probe length L [mm]	45

Liquids

Setting range [cm/s]	3...300
Greatest sensitivity [cm/s]	3...60

Gases

Setting range [cm/s]	200...3000
Greatest sensitivity [cm/s]	200...800

Accuracy / deviations

Temperature gradient [K/min]	300

Response times

Response time [s]	1...10

Operating conditions

Storage temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

Shock resistance

DIN IEC 68-2-27

40 g (11 ms)

Vibration resistance

DIN IEC 68-2-6

10 g (55...2000 Hz)

MTTF [years]

8096

Mechanical data

Weight [g]	449.5
Housing	for adapter
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	titanium (3.7035)
Materials (wetted parts)	titanium (3.7035); O-ring: FKM 80 Shore A
Process connection	M18 x 1,5 internal thread

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 6 m, silicone; Maximum cable length: 100 m; 5 x 0.34 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SF5800-00 — 05.11.2020 —
