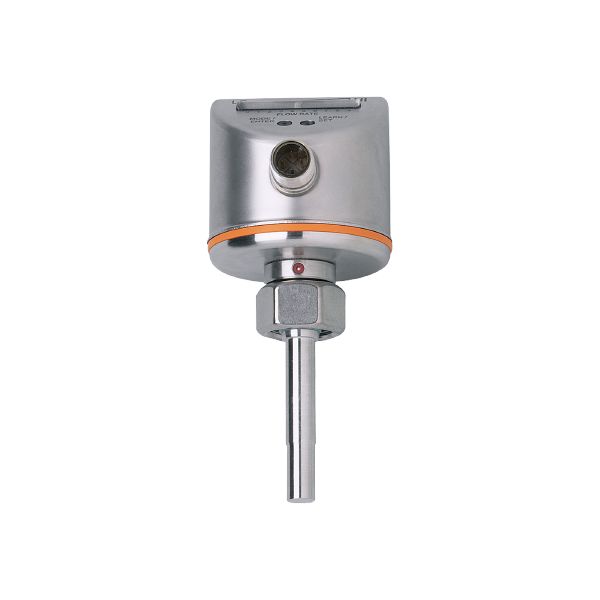

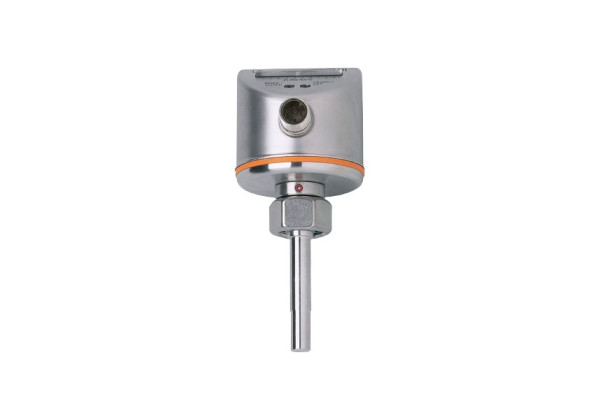

SI0551 - efector300-SID10ABB100G/US-100
Brand: IFM Electronic
Code: SI0551
- Reliable monitoring of liquids in pipes
- Variable process connection using adapters
- Easy setting of the switch points for quick set-up
- Robust stainless steel housing for use in harsh industrial environments
- LED bar graph for indication of switch point and flow
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Process connection | M18 x 1,5 internal thread |
Application
| Media | Liquids |
|---|---|
| Medium temperature [°C] | -25...80 |
| Pressure rating [bar] | 30 |
Electrical data
| Operating voltage [V] | 19...36 DC |
|---|---|
| Current consumption [mA] | < 60 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 10 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Overload protection | yes |
Measuring/setting range
| Probe length L [mm] | 45 |
|---|---|
| Flow range [cm/s] | 3...250 |
| Greatest sensitivity [cm/s] | 3...100 |
Accuracy / deviations
| Repeatability [cm/s] | 1...5 | ||
|---|---|---|---|
| Note on repeatability |
| ||
| Temperature drift [cm/s x 1/K] | 0.1; (for water 5...100 cm/s; 10...70 °C) |
Response times
| Response time [s] | 1...10 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -25...100 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
| ||||||||
| Vibration resistance |
| ||||||||
| MTTF [years] | 238 |
Mechanical data
| Weight [g] | 228.3 |
|---|---|
| Dimensions [mm] | M18 x 1.5 |
| Thread designation | M18 x 1.5 |
| Materials | stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A |
| Process connection | M18 x 1,5 internal thread |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SI0551-01 — 13.04.2023 —
