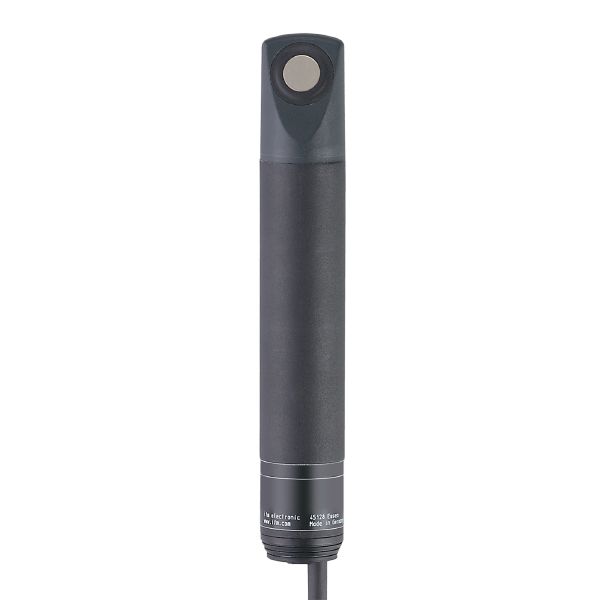

SL5201 - efector300-SLG23XEE40KG/2M/BS

Code: SL5201

Reliable airflow monitoring
For use in ventilation systems in building automation
User-friendly setting of the requested immersion depth of the sensor
Precise analogue output

Product characteristics

Number of inputs and outputs	Number of analogue outputs: 1
Process connection	Ø 23 mm

Application

Special feature	Gold-plated contacts
Medium temperature [°C]	35...65
Pressure rating [bar]	1

Electrical data

Operating voltage tolerance [%]	-10...10
Operating voltage [V]	24 DC
Current consumption [mA]	< 35
Min. insulation resistance [MΩ]	100; (500 V DC)
Power-on delay time [s]	90

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue voltage output [V]	0...10

Measuring/setting range

Flow range [cm/s]

200...2000

Note on flow range

= 1...10 V

Accuracy / deviations

Temperature gradient [K/min]	1

Operating conditions

Ambient temperature [°C]	-10...50
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90
Protection	IP 65

Tests / approvals

MTTF [years]	726

Mechanical data

Weight [g]	219
Dimensions [mm]	Ø 23 / L = 142
Materials	housing: PBT; sensor surface: titanium
Materials (wetted parts)	PBT; titanium
Process connection	Ø 23 mm

Displays / operating elements

Display

operation

LED, green

Accessories

Items supplied

Mounting clamp: 1, E40048

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m; 4 x 0.5 mm²
Connection	Connector: 1 x M16 (Binder 09-0309-00-04); coding: A; Contacts: gold-plated
