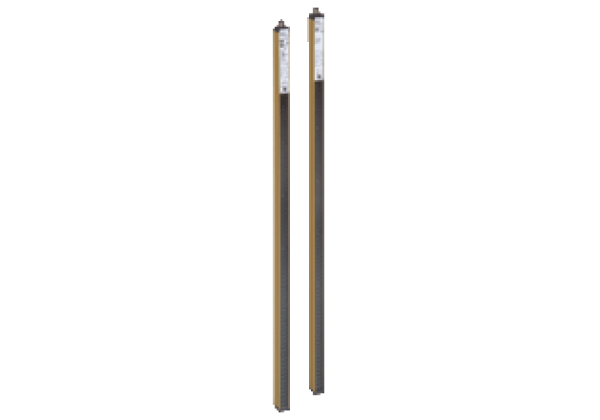

Safety light curtain SLCS14
Brand: Pepperl+Fuchs
Code: SLCS14
Resolution 14 mm (finger protection), Protection field height up to 1200 mm, Self-monitoring (type 4 according to IEC/EN 61496-1), SIL3 (IEC 61508), Degree of protection IP67, Temperature range -35... 60°C (-31... 140 °F), Slim design, mounting on three sides, Protection field height: see Table 1, max. 1200 mm, Operating mode: Startup/restart disable, deactivateable, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e
Datasheet excerpt: Technical data of SLCS14
| Product Description |
|---|
| Safety light curtain |
| General specifications | ||
|---|---|---|
| Effective detection range | 0.4... 8 m | |
| Light source | IRED | |
| Light type | modulated infrared light , 850 nm | |
| Protection field height | see Table 1, max. 1200 mm | |
| Operating mode | Startup/restart disable, deactivateable | |
| Optical resolution | 14 mm | |
| Opening angle | < 5 ° | |
| Ambient light limit | Not sensitive to ambient light in accordance with IEC 61496-2 | |
| UL File Number | E215245 | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Performance level (PL) | PL e | |
| Category | Cat. 4 | |
| Mission Time (TM) | 20 a | |
| PFHd | Depending on the protection field height; see Manual | |
| Type | 4 | |
| Indicators/operating means | ||
| Operation indicator | green: Power on | |
| Function indicator | Green: OSSD ON , Red: OSSD OFF | |
| Status indicator | Transmitter unit: LED yellow: Mode, test or error Receiver: LED yellow: Start readiness, function reserve or error | |
| Electrical specifications | ||
| Operating voltage | 24 V DC (-20%, +30%) ; Power supply with safe isolation: 24 V DC | |
| No-load supply current | Transmitter unit:≤ 150 mA Receiver: ≤ 150 mA (without outputs) | |
| Protection class | III , IEC 61140 | |
| Power consumption | Transmitter unit: 5 W Receiver: 15 W | |
| Input 1 | ||
| Input type | Transmitter unit test | |
| Input format | Break contact | |
| Switching voltage | 24 V DC | |
| Input current | 5 mA | |
| Input 2 | ||
| Input type | Transmitter unit, mode A/B | |
| Function | Beam Code A: open or 0 V Beam Code B: 24 V DC, 5 mA | |
| Input 3 | ||
| Input type | Receiver unit relay monitor | |
| Input format | Break contact | |
| Switching voltage | 24 V DC | |
| Input current | 5 mA | |
| Input 4 | ||
| Input type | Receiver unit, start release | |
| Input format | Break contact | |
| Input current | 5 mA | |
| Input 5 | ||
| Input type | Receiver unit, mode A/B (see transmitter unit, mode A/B) | |
| Output | ||
| Response time | see Table 1, max. 54 ms | |
| Output 1 | ||
| Output type | Receiver unit OSSD | |
| Signal output | PNP semiconductor , monitored for short and cross circuits | |
| Switching voltage | ON: UB - 2 V; OFF: < 1 V | |
| Switching current | ON: max. 0.1 A; OFF: < 5 µA | |
| Output 2 | ||
| Output type | Receiver signal output start readiness | |
| Signal output | PNP-semiconductor, short-circuit protected, 0.1A | |
| Conformity | ||
| Functional safety | ISO 13849-1 ; EN 61508 part1-4 | |
| Product standard | EN 61496-1 ; IEC 61496-2 | |
| Photobiological safety | Risk group 0 according to IEC 62471 | |
| Approvals and certificates | ||
| CE conformity | CE | |
| UKCA conformity | UKCA | |
| UL approval | cULus Listed | |
| TÜV approval | TÜV SÜD | |
| Ambient conditions | ||
| Ambient temperature | -35... 60 °C (-31... 140 °F) | |
| Storage temperature | -35... 70 °C (-31... 158 °F) | |
| Relative humidity | max. 95 %, not condensing | |
| Shock resistance | 10 g , 16 ms ; stationary applications only | |
| Vibration resistance | 0.35 mm , 10... 55 Hz ; stationary applications only | |
| Mechanical specifications | ||
| Housing length L | see table 2 | |
| Degree of protection | IP67 , For indoor use only | |
| Connection | Transmitter unit: 4-pin, M12 x 1 connector Receiver: 8-pin, M12 x 1 connector Cable cross section min. 0.25 mm2 Max. cable length 50 m | |
| Material | ||
| Housing | extruded aluminum section , gold anodized | |
| Optical face | Plastic pane , Transparent polycarbonate | |
| Mass | see table 2 | |
| General information | ||
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272704 |
| ECLASS 12.0 | 27272704 |
| ECLASS 11.0 | 27272704 |
| ECLASS 10.0.1 | 27272704 |
| ECLASS 9.0 | 27272704 |
| ECLASS 8.0 | 27272704 |
| ECLASS 5.1 | 27272704 |
| ETIM 9.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 5.0 | EC002549 |
| UNSPSC 12.1 | 46171620 |
