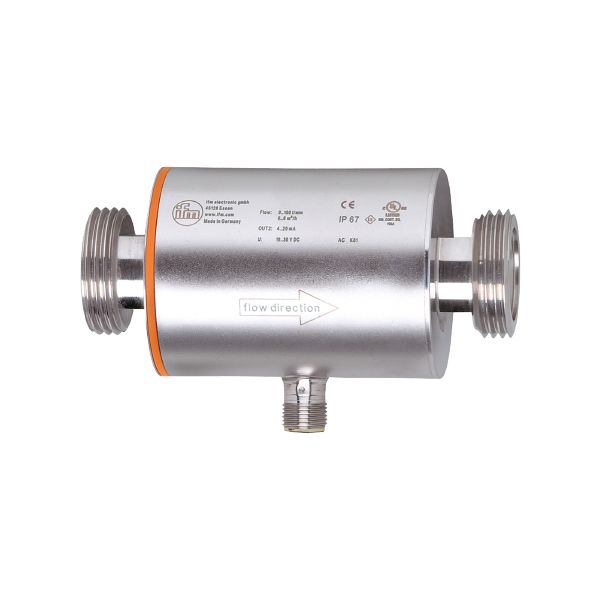

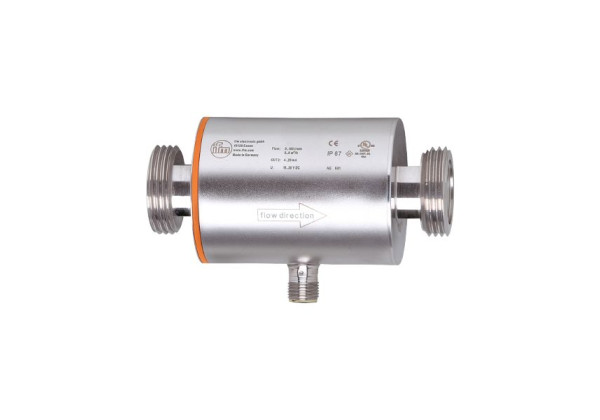

SM8050 - efector300-SMR11GGX10KG/US
Brand: IFM Electronic
Code: SM8050
- Precise measurement of flow and medium temperature
- High accuracy, repeatability and measurement dynamics
- With analogue output and IO-Link interface
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Measuring range [l/min] | 0.2...100 |
| Process connection | threaded connection G 1 DN25 flat seal |
Application
| Special feature | Gold-plated contacts | ||
|---|---|---|---|
| Application | for industrial applications | ||
| Installation | connection to pipe by means of an adapter | ||
| Media | conductive liquids; water; hydrous media | ||
| Note on media |
| ||
| Medium temperature [°C] | -10...70 | ||
| Pressure rating [bar] | 16 | ||
| Pressure rating [Mpa] | 1.6 | ||
| MAWP (for applications according to CRN) [bar] | 11.2 |
Electrical data
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | 95; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 5 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal; IO-Link; (configurable) |
| Permanent current rating of switching output DC [mA] | 250 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Overload protection | yes |
Measuring/setting range
| Measuring range [l/min] | 0.2...100 |
|---|
Accuracy / deviations
| Accuracy (in the measuring range) | ± (0,8 % MW + 0,5 % MEW) |
|---|---|
| Repeatability | ± 0,2% MEW |
Response times
| Response time [s] | 0.15; (dAP = 0, T19) |
|---|
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis | ||||
| SIO mode | yes | ||||
| Required master port type | A | ||||
| Process data analogue | 2 | ||||
| Min. process cycle time [ms] | 3 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -10...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CPA approval |
| ||||||||||||
| Shock resistance |
| ||||||||||||
| Vibration resistance |
| ||||||||||||
| MTTF [years] | 167 | ||||||||||||
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight [g] | 575 |
|---|---|
| Materials | stainless steel (1.4404 / 316L); PBT-GF20; FKM; TPE |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); PEEK; FKM |
| Process connection | threaded connection G 1 DN25 flat seal |
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
Diagrams and graphs
| Pressure loss |
|
|---|
