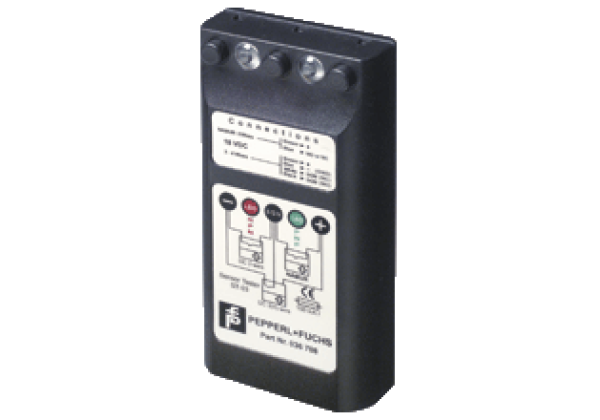

Sensor tester ST 03
Brand: Pepperl+Fuchs
Code: ST 03
Sensor tester
Datasheet excerpt: Technical data of ST 03
| Product Description |
|---|
| Sensor tester |
| Electrical specifications | ||
|---|---|---|
| Operating voltage | 18 V, two 9 V block batteries included with delivery | |
| Current loading capacity | load current max. 100 mA | |
| Mechanical specifications | ||
| Connection | 3 connection terminals for 0 V, 18 V and signal input | |
| Dimensions | 131 mm x 65 mm x 27 mm | |
| Note | NAMUR sensors are not tested in accordance with EN 60079-11 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 19200504 |
| ECLASS 12.0 | 19200504 |
| ECLASS 11.0 | 19200504 |
| ECLASS 10.0.1 | 19200504 |
| ECLASS 9.0 | 19200504 |
| ECLASS 8.0 | 27279211 |
| ECLASS 5.1 | 27279211 |
| ETIM 9.0 | EC000305 |
| ETIM 8.0 | EC000305 |
| ETIM 7.0 | EC000305 |
| ETIM 6.0 | EC000305 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 41113642 |
