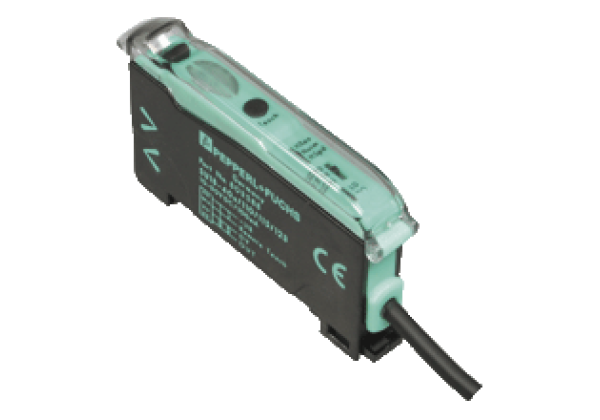

Fiber optic sensor SU18-40a/110/115a
Brand: Pepperl+Fuchs
Code: SU18-40a/110/115a
Fiber optic sensor for glass fiber optic and plastic fiber optic, slim design, red light, 3 response times available, light/dark on, push-pull output, fixed cable with M8 plug, Basic line for DIN rail installation, Sleek design, 3 response times selectable, High switching frequency
Datasheet excerpt: Technical data of SU18-40a/110/115a
| Product Description |
|---|
| Fiber optic sensor for glass fiber optic and plastic fiber optic, slim design, red light, 3 response times available, light/dark on, push-pull output, fixed cable with M8 plug |
| General specifications | ||
|---|---|---|
| Sensor range | up to 150 mm (KLR-C02-2,2-2,0-K146) | |
| Detection range | up to 450 mm (KLE-C01-2,2-2,0-K116) | |
| Light source | LED | |
| Light type | modulated visible red light , 660 nm | |
| Ambient light limit | 10000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 690 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) | |
| Function indicator | LED yellow: static illumination switching state, flashes when falling short of the operating reserve | |
| Control elements | Teach-In key slide switch 2 positions: light/dark switching slide switch 3 positions: timer function - timer off, on delay 40 ms, off-delay 40 ms slide switch 3 positions: operating mode - normal, high speed , high resolution | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | 10 % | |
| No-load supply current | ≤ 30 mA | |
| Output | ||
| Stability alarm output | 1 push-pull (4 in 1) output NPN/PNP , short-circuit protected | |
| Switching type | light/dark on, switchable | |
| Signal output | 1 push-pull (4 in 1) output NPN/PNP , short-circuit protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Voltage drop | ≤ 2 V DC at 100 mA ; ≤ 0.7 V at 10 mA | |
| Switching frequency | Standard mode: 3 kHz , High speed mode: 6 kHz , High resolution: 500 Hz | |
| Response time | Standard mode: 160 µs , High speed mode: 80 µs , High resolution: 1 ms | |
| Repeat accuracy | ≤ 0.5 % of adjusted sensor range | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -10... 55 °C (14... 131 °F) | |
| Storage temperature | -20... 70 °C (-4... 158 °F) | |
| Mechanical specifications | ||
| Housing width | 9 mm | |
| Housing height | 34.5 mm | |
| Housing depth | 62.3 mm | |
| Degree of protection | IP50 | |
| Connection | 200 mm, PVC cable with M8 connector, 3-pin | |
| Material | ||
| Housing | PC | |
| Mass | 45 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 10.0.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 5.1 | 27270905 |
| ETIM 9.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 5.0 | EC002651 |
| UNSPSC 12.1 | 39121528 |
