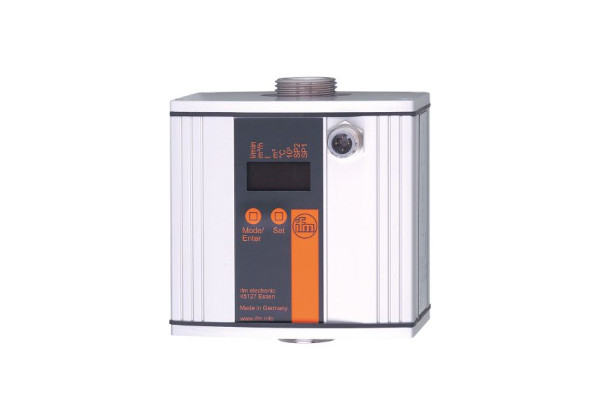

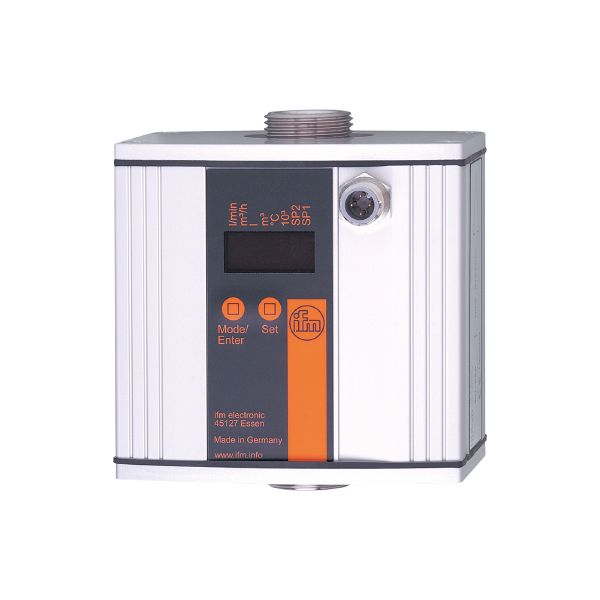

SU7200 - efector300-SUR34HGBFPKG/W/US-100-IPF

Brand: IFM Electronic

Code: SU7200

Reliable detection of flow and medium temperature
Suitable for water, oils and glycol solutions
For installation in pipes
With two programmable switching outputs
Clearly visible 4-digit LED display

Product characteristics

Number of inputs and outputs

Number of digital outputs: 2

Measuring range

0...50 l/min

0...13.2 gpm

Process connection

threaded connection G 3/4 flat seal

Application

Special feature

Gold-plated contacts

Application

for industrial applications

Installation

connection to pipe by means of an adapter

Media

water; glycol solutions; coolants; oils

Note on media

low-viscosity oils with viscosity: 7...40 mm²/s (40 °C)

high-viscosity oils with viscosity: 30...68 mm²/s (40 °C)

Medium temperature [°C]

-10...80

Pressure rating

16 bar

1.6 Mpa

Electrical data

Operating voltage [V]	19...30 DC; (to SELV/PELV)
Current consumption [mA]	100
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	10

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Total number of outputs	2
Output signal	switching signal
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250; (per output)
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range

0...50 l/min

0...13.2 gpm

Display range

0...60 l/min

0...15.9 gpm

Resolution

0.1 l/min

0.02 gpm

Set point SP

0.1...50 l/min

0.04...13.22 gpm

Reset point rP

0...49.9 l/min

0...13.18 gpm

Max. flow rate [l/min]

In steps of

0.1 l/min

0.02 gpm

Temperature monitoring

Measuring range [°C]	-10...80
Resolution [°C]	0.2
Set point SP [°C]	-9.8...80
Reset point rP [°C]	-10...79.8
In steps of [°C]	0.2

Accuracy / deviations

Flow monitoring

Accuracy (in the measuring range)	water: < ± (3 % MW + 0,2 % MEW); glycol (35 %), oil (viscosity 68 mm²/s at 40 °C): < ± (5 % MW + 0,5 % MEW)
Repeatability	0,1 l/min (0,025 gpm)

Temperature monitoring

Accuracy [K]	0,2

Response times

Flow monitoring

Response time [s]	0.25; (dAP = 0)
Delay time programmable dS, dr [s]	0...50
Damping process value dAP [s]	0...1

Temperature monitoring

Dynamic response T05 / T09 [s]	T09 = 70 (Q > 5 l/min); (water)

Software / programming

Parameter setting options	Flow monitoring; Temperature monitoring

Operating conditions

Ambient temperature [°C]	-10...60
Storage temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	0,5 kV
EN 61000-4-6 HF conducted	10 V

CPA approval

model number	001US
accuracy class	3
maximum allowable error	-
Q (min)	0,5 m³/h
Q (t)	-
Q (max)	3 m³/h

Shock resistance

DIN IEC 68-2-27

20 g (11 ms)

Vibration resistance

DIN IEC 68-2-6

5 g (10...2000 Hz)

MTTF [years]

246

Pressure Equipment Directive

Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight [g]	1535.5
Materials	housing: AlMgSi0,5 anodised; Sealing: FKM; PA 6.6; cover film: PA
Materials (wetted parts)	stainless steel (1.4404 / 316L); FKM; PES; Centellen 200
Process connection	threaded connection G 3/4 flat seal

Displays / operating elements

Display

Display unit	4 x LED, green (l/min, m³/h, gal/min, gal/h)
Display unit	2 x LED, yellow (°C / °F)
switching status	2 x LED, yellow
measured values	alphanumeric display, 4-digit
programming	alphanumeric display, 4-digit

Display unit

l/min; m³/h; gpm; gph; °C; °F

Accessories

Items supplied

sealings: 2, Centellen

Accessories (optional)

adapter for pipe: 1 x R1/2, stainless steel, E40178

adapter for pipe: 1 x 1/2" NPT, stainless steel, E40191

adapter for pipe: 1 x R1/2, brass, E40151

adapter for pipe: 1 x 1/2" NPT, brass, E40154

Remarks

MW = measured value

MEW = Final value of the measuring range

sealing: only with supplied Centellen seals

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Moulded body: brass, Optalloy-plated; Contacts: gold-plated

Diagrams and graphs

Pressure loss

dP	Pressure loss
Q	volumetric flow quantity
