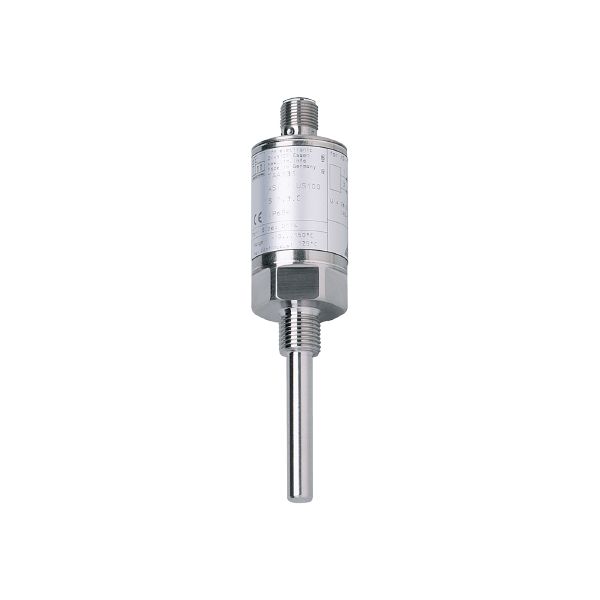

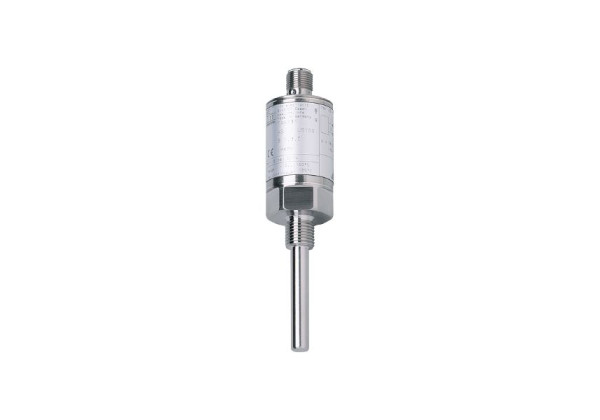

TAA131 - efector600-TAA060CCDR14-ASIVG/US
Brand: IFM Electronic
Code: TAA131
- High precision across the entire temperature measurement range
- Particularly good response dynamics and very short power-on delay time
- Robust stainless steel housing with very high pressure rating
- With AS-i interface
- High protection rating for the requirements of harsh industrial environments
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 | ||
|---|---|---|---|
| Measuring range |
| ||
| Process connection | threaded connection G 1/4 external thread | ||
| Installation length EL [mm] | 60 |
Application
| Special feature | Gold-plated contacts | ||
|---|---|---|---|
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) | ||
| Media | liquids and gases | ||
| Medium temperature |
| ||
| Pressure rating [bar] | 400 | ||
| Minimum installation depth [mm] | 15 |
Electrical data
| Operating voltage [V] | 18...31.6 DC |
|---|---|
| Current consumption [mA] | < 25 |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal |
| Electrical design | AS-i |
| Number of analogue outputs | 1 |
| Overload protection | yes |
Measuring/setting range
| Probe length L [mm] | 60 | ||
|---|---|---|---|
| Measuring range |
|
| Resolution of analogue output [K] | 0.05 |
|---|
Accuracy / deviations
| Precision analogue output [K] | ± 0,1 (60°C / 140°F ) / ± 0,3 (0...140°C / 32...284°F) |
|---|---|
| Temperature coefficient [% of the span / 10 K] | < ± 0,1; (in case of deviation from the reference condition 25 ± 5 °C) |
Response times
| Dynamic response T05 / T09 [s] | 1 / 3; (to DIN EN 60751) |
|---|
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
| ||||||||||
| Vibration resistance |
| ||||||||||
| MTTF [years] | 348 |
AS-i classification
| AS-i version | 2.11 |
|---|---|
| AS-i I/O configuration [hex] | 7 |
| AS-i ID code [hex] | 3.C |
Mechanical data
| Weight [g] | 169.5 |
|---|---|
| Dimensions [mm] | Ø 30 / L = 127.9 |
| Materials | stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); stainless steel (1.4305 / 303); PA |
| Materials (wetted parts) | stainless steel (1.4404 / 316L) |
| Process connection | threaded connection G 1/4 external thread |
| Installation length EL [mm] | 60 |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| |||
|---|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TAA131-00 — 19.11.2009 —
