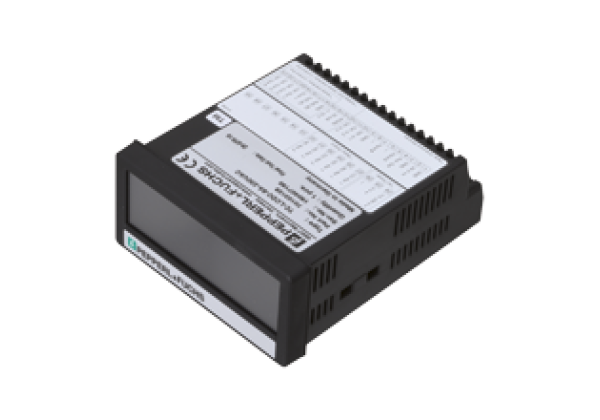

Counter/Timer/Tachometer TC-LCDC-8A-230VAC
Brand: Pepperl+Fuchs
Code: TC-LCDC-8A-230VAC
Multifunction device with operating modes such as rev counter, other counters, throughput time display, position display, timer for runtimes, stopwatch, and process display, HTL inputs for encoders and sensors with NPN, PNP and NAMUR characteristics, Bright, high-contrast display with event-dependent color versions, Emulation of a seven-segment display with symbols and units, Auxiliary voltage output 5/24 V DC for encoder supply, Operating voltage: 115... 230 V AC, 50... 60 Hz
Datasheet excerpt: Technical data of TC-LCDC-8A-230VAC
| Indicators/operating means | ||
|---|---|---|
| Type | Graphic LCD display with background lighting | |
| Number of digits | 8 | |
| Display value | digit height 13 mm | |
| Display | ||
| Touchscreen technology | resistive | |
| Colors | Capability to switch between red, green, and yellow | |
| Display interval | -99999999... 99999999 | |
| Accuracy | Measurement: ± 50 ppm, ± 1 digit | |
| Electrical specifications | ||
| Fusing | External: T 0.5 A Reverse polarity protection | |
| Operating voltage | 115... 230 V AC, 50... 60 Hz | |
| Power consumption | approx. 3 VA (Unladen) | |
| Supply | Rotary encoder: 24 V DC (± 15 %) Max. 150 mA up to 45 °C, max. 80 mA from 45 °C | |
| Interface | ||
| Interface type | Serial RS-232 | |
| Transfer rate | 9600, 19200, or 38400 baud | |
| Input 1 | ||
| Input type | Incremental PNP, NPN, NAMUR, or Tri-State | |
| Input format | HTL (low: 0…3 V, high: 9…30 V) | |
| Connection | Two spurs: A, B | |
| Input frequency | max. 250 kHz | |
| Load current | Max. 6 mA/Ri > 5 kΩ / 470 pF | |
| Input 2 | ||
| Input type | 3 x Control input | |
| Input format | HTL, PNP (low: 0 V … 3 V, high: 9 V … 30 V) | |
| Input frequency | max. 10 kHz | |
| Load current | Max. 2 mA/Ri > 15 kΩ/470 pF | |
| Output 1 | ||
| Number/Type | Analog output Configurable as Current or voltage output | |
| Current | 0/4 mA … 20 mA (Max. load: 270 Ω) | |
| Voltage | -10... 10 V (Max. 2 mA) | |
| Resolution | 16 bit ± 0.1 % at 0 °C … 45 °C ± 0.15 % at -20 °C … 0 °C und 45 °C … 60 °C | |
| Response time | < 150 ms | |
| Output 2 | ||
| Output type | 4 x Control output | |
| Output format | PNP | |
| Output voltage | 5 V … 30 V (Depending on voltage at COM+) | |
| Output rated operating current | max. 200 mA | |
| Response time | < 1 ms | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61326-1:2013 EN 55011:2016+A1:2017+A11:2020 | |
| Low voltage | ||
| Directive 2014/35/EU | EN 61010-1:2010+A1:2019 EN 61010-2-201:2018 | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | -25... 70 °C (-13... 158 °F) | |
| Mechanical specifications | ||
| Housing width | 96 mm | |
| Housing height | 48 mm | |
| Housing depth | 116 mm | |
| Degree of protection | IP65 (front) IP20 (Connection side) | |
| Connection | screw terminals 1.5 mm², AWG 16 | |
| Material | ||
| Housing | ABS, UL 94 V-0 | |
| Installation | Panel mount Cutout W x H: 91 x 43 mm | |
| Mass | approx. 200 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27210301 |
| ECLASS 12.0 | 27210301 |
| ECLASS 11.0 | 27210301 |
| ECLASS 10.0.1 | 27210301 |
| ECLASS 9.0 | 27210301 |
| ECLASS 8.0 | 27210301 |
| ECLASS 5.1 | 27210301 |
| ETIM 9.0 | EC002300 |
| ETIM 8.0 | EC002300 |
| ETIM 7.0 | EC002300 |
| ETIM 6.0 | EC002300 |
| ETIM 5.0 | EC000677 |
| UNSPSC 12.1 | 43211906 |
