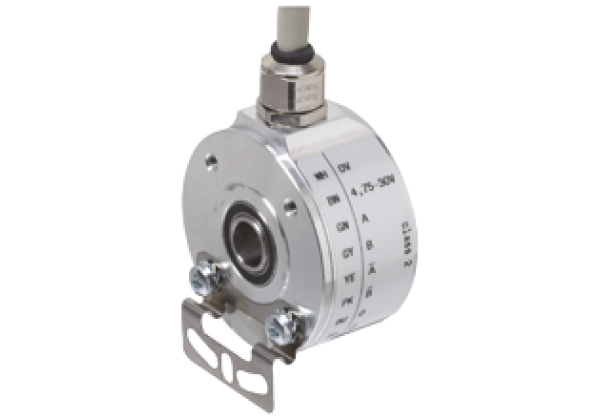

Incremental rotary encoder THI40N
Brand: Pepperl+Fuchs
Code: THI40N
Compact design, Up to 1024 ppr, 4.75 V... 30 V with short-circuit proof push-pull output, RS 422 functionality at 5 V operation, Enclosure type: 40 mm, Type of shaft: Hollow shaft, Interface: push-pull, incremental or RS-422, incremental, Detection type: photoelectric sampling, Output type: push-pull, incremental or RS-422, incremental
Datasheet excerpt: Technical data of THI40N
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | max. 1024 | |
| Electrical specifications | ||
| Operating voltage | 4.75... 30 V DC 5 V DC for RS-422 | |
| No-load supply current | max. 55 mA | |
| Output | ||
| Output type | push-pull, incremental or RS-422, incremental | |
| Voltage drop | ≤ 2.5 V (< 2.5 V) | |
| Load current | max. per channel 30 mA , short-circuit protected (max. per channel 20 mA, conditionally short-circuit proof) | |
| Output frequency | max. 100 kHz (max. 100 kHz) | |
| Rise time | 980 ns (225 ns) | |
| De-energized delay | 980 ns (225 ns) | |
| Connection | ||
| Cable | ∅5 mm, 8 x 0.08 mm2, 2 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP54 | |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Maximum permissible ambient temperature | max. 60 °C (max. 140 °F) | |
| Ambient conditions | ||
| Operating temperature | -10... 70 °C (14... 158 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | Aluminum | |
| Flange | Aluminum | |
| Shaft | Stainless steel | |
| Mass | approx. 160 g | |
| Rotational speed | max. 6000 min -1 | |
| Moment of inertia | ≤ 5 gcm2 | |
| Starting torque | ≤ 1 Ncm | |
