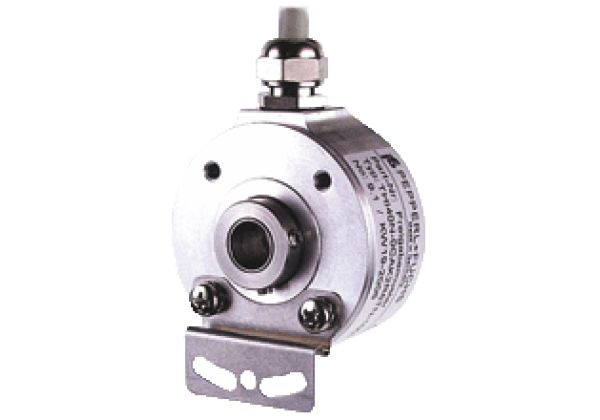

Incremental rotary encoder THI40P-1CAK2R6TN-01024

Code: THI40P-1CAK2R6TN-01024

Compact design, 1024 ppr, 4.75 V... 30 V with short-circuit proof push-pull output, Degree of protection IP65, Output type: push-pull, incremental

Datasheet excerpt: Technical data of THI40P-1CAK2R6TN-01024

General specifications
Detection type		photoelectric sampling
Pulse count		1024
Electrical specifications
Operating voltage		4.75... 30 V DC
No-load supply current		max. 55 mA
Output
Output type		push-pull, incremental
Voltage drop		≤ 2.5 V
Load current		max. per channel 30 mA , short-circuit protected
Output frequency		max. 100 kHz
Rise time		980 ns
De-energized delay		980 ns
Connection
Cable		∅5 mm, 8 x 0.08 mm², 2 m
Standard conformity
Degree of protection		DIN EN 60529, IP65
Climatic testing		DIN EN 60068-2-3, no moisture condensation
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 6 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
	Maximum permissible ambient temperature	max. 60 °C (max. 140 °F)
Ambient conditions
Operating temperature		-10... 60 °C (14... 140 °F)
Storage temperature		-25... 85 °C (-13... 185 °F)
Mechanical specifications
Material
	Housing	Aluminum
	Flange	Aluminum
	Shaft	Stainless steel
Mass		approx. 160 g
Rotational speed		max. 6000 min ^-1
Moment of inertia		≤ 5 gcm²
Starting torque		≤ 1 Ncm
