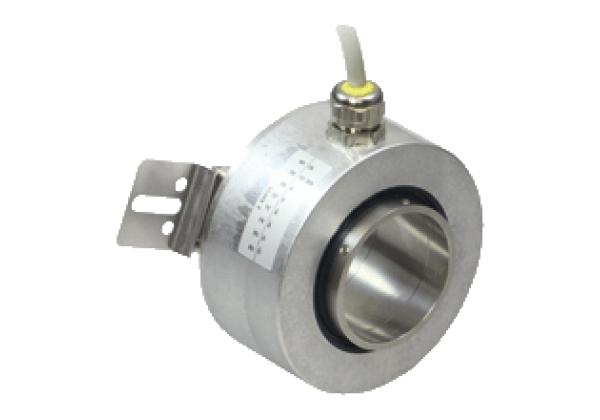

Incremental rotary encoder THI90
Brand: Pepperl+Fuchs
Code: THI90
Compact design housing ∅90 mm, 25 mm and 45 mm hollow shaft, Cost-effective, Short delivery times, Shaft mounting with threaded pins, Output type: push-pull, incremental or RS 422, incremental
(see "Output circuit" in the ordering information)
Datasheet excerpt: Technical data of THI90
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | 512 , 600 , 1024 , 2048 | |
| UL File Number | E223176 | |
| Functional safety related parameters | ||
| MTTFd | 140 a | |
| Mission Time (TM) | 20 a | |
| L10 | 50 E+9 at 1750 rpm | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC or 5 V DC ± 5 % (see "Output circuit" in the ordering information) | |
| No-load supply current | max. 70 mA | |
| Output | ||
| Output type | push-pull, incremental or RS 422, incremental (see "Output circuit" in the ordering information) | |
| Voltage drop | < 2.5 V (push-pull, incremental) | |
| Load current | max. per channel 40 mA , short-circuit protected, reverse polarity protected (push-pull, incremental) max. per channel 20 mA , short-circuit protected, reverse polarity protected (RS 422, incremental) | |
| Output frequency | max. 200 kHz | |
| Rise time | 600 ns | |
| De-energized delay | 600 ns | |
| Connection | ||
| Cable | ∅6.5 mm, 4 x 2 x 0.14 mm2, 1 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP54 | |
| Climatic testing | DIN EN 60068-2-78 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Maximum permissible ambient temperature | max. 60 °C (max. 140 °F) | |
| Ambient conditions | ||
| Operating temperature | -5... 70 °C (23... 158 °F) , movable cable -20... 70 °C (-4... 158 °F), fixed cable | |
| Storage temperature | -40... 80 °C (-40... 176 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | Aluminum | |
| Flange | 3.1645 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 900 g | |
| Rotational speed | max. 3500 min -1 | |
| Starting torque | ≤ 6 Ncm | |
| Shaft load | ||
| Angle offset | 1 ° | |
| Axial offset | max. 1 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 10.0.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 5.1 | 27270501 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
