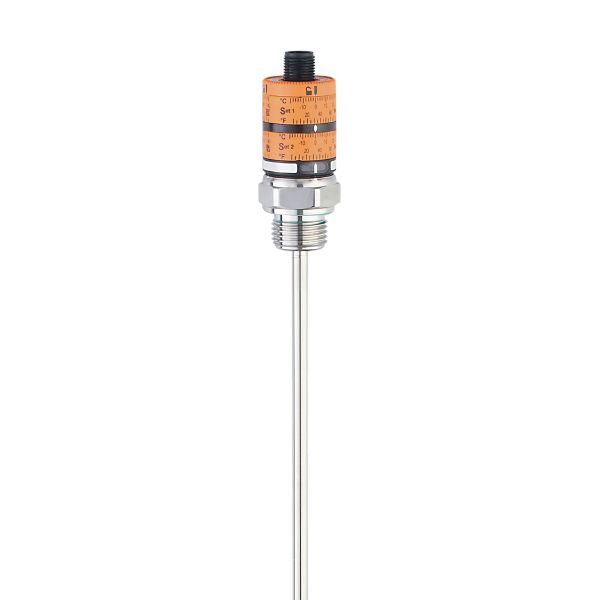

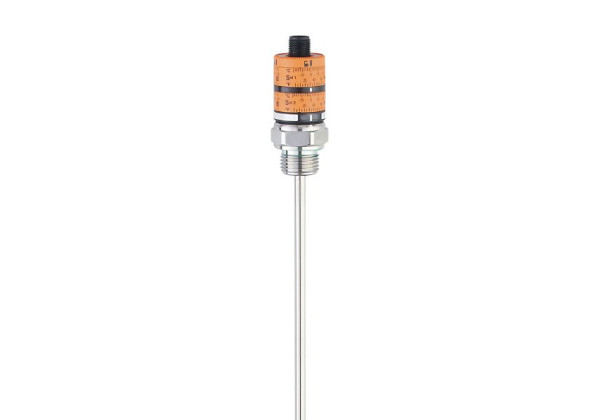

TK7460 - TK-250CLFR12-QKPKG / US
Brand: IFM Electronic
Code: TK7460
- Simple switch point setting by means of two setting rings allowing optimum reading
- Setting of the switch points without system temperature being applied
- Two switching outputs with fixed hysteresis
- Particularly good response dynamics and very short power-on delay time
- Mechanical locking prevents inadvertent switch point manipulation
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 | ||
|---|---|---|---|
| Measuring range |
| ||
| Process connection | threaded connection G 1/2 | ||
| Installation length EL [mm] | 250 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Media | liquids and gases |
| Medium temperature [°C] | -40...145 |
| Pressure rating [bar] | 300 |
Electrical data
| Operating voltage [V] | 9.6...32 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 0.5 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range |
| ||
|---|---|---|---|
| Set point SP |
|
Accuracy / deviations
| Temperature drift per 10 K [K] | 0.1 **) |
|---|---|
| Repeatability [K] | ± 0,1 |
| Setting accuracy [K] | ± 3 |
Response times
| Dynamic response T05 / T09 [s] | 1 / 3; (to DIN EN 60751) |
|---|
Software / programming
| Adjustment of the switch point | setting rings |
|---|
Operating conditions
| Ambient temperature [°C] | -40...80 | |||
|---|---|---|---|---|
| Note on ambient temperature |
| |||
| Storage temperature [°C] | -40...100 | |||
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
| ||||||||
| Vibration resistance |
| ||||||||
| MTTF [years] | 643.1 | ||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 142 |
|---|---|
| Materials | stainless steel (1.4404 / 316L); PC; PBT; FKM |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); FKM |
| Tightening torque [Nm] | 45 |
| Process connection | threaded connection G 1/2 |
| Probe diameter [mm] | 6 |
| Installation length EL [mm] | 250 |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TK7460-00 — 26.04.2021 —
