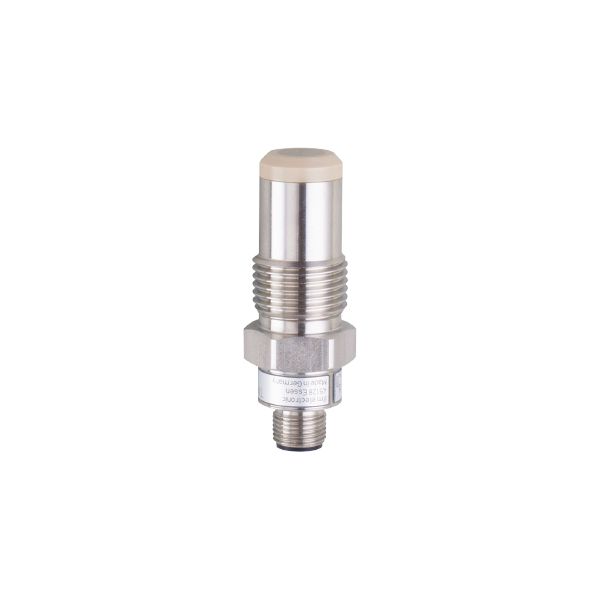

TM4599 Temperature sensor with process connection TM-000KLER12-/US/

Code: TM4599

Hygienic and robust design
Particularly space-saving design
Safe sealing in the process
Adapters for all standard process connections

Product characteristics

Measuring range [°C]	-50...140
Process connection	threaded connection G 1/2 sealing cone flush mountable

Application

Special feature	Gold-plated contacts
Measuring element	1 x Pt 100; (to DIN EN 60751, class A)
Media	liquids and gases
Medium temperature [°C]	< 100; (< 5 min: 150)
Pressure rating [bar]	16

Electrical data

Protection class	III

Measuring/setting range

Measuring range [°C]	-50...140

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x\|t\|)

Response times

Dynamic response T05 / T09 [s]	10 / 40; (for water (70 °C; 0,04 m/s))

Operating conditions

Ambient temperature [°C]	-20...70
Storage temperature [°C]	-40...100
Protection	IP 69K; (in conjunction with a corresponding connector)

Tests / approvals

MTTF [years]	12683.9

Mechanical data

Weight [g]	126.5
Materials	stainless steel (1.4404 / 316L); PEEK
Materials (wetted parts)	stainless steel (1.4404 / 316L); PEEK
Tightening torque [Nm]	10
Process connection	threaded connection G 1/2 sealing cone flush mountable

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
