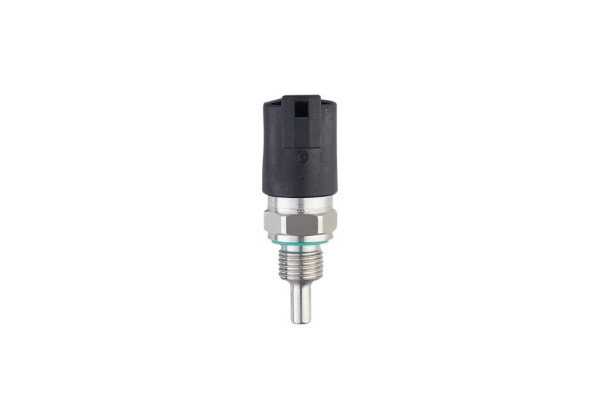

TM6101 - TM-025KCBR14- /DE/

Brand: IFM Electronic

Code: TM6101

High precision across the entire temperature measurement range
DEUTSCH connector for the fast and easy connection to the on-board system
Particularly good response dynamics and very short power-on delay time
Robust stainless steel housing with very high pressure rating
High protection rating for the requirements of mobile machines

Product characteristics

Measuring range

-40...150 °C

-40...302 °F

Process connection

threaded connection G 1/4

Installation length EL [mm]

Application

Measuring element	1 x Pt 1000; (to DIN EN 60751, class A)
Media	liquids and gases
Pressure rating [bar]	400

Electrical data

Protection class	III

Measuring/setting range

Probe length L [mm]

Measuring range

-40...150 °C

-40...302 °F

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x\|t\|)

Response times

Dynamic response T05 / T09 [s]	1 / 3; (to DIN EN 60751)

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 68; IP 69K

Tests / approvals

Shock resistance

DIN EN 60068-2-27

50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (10...2000 Hz)

MTTF [years]

22831

UL approval

UL Approval no.

K017

Mechanical data

Weight [g]	82
Materials	stainless steel (1.4404 / 316L); PPS; FKM
Materials (wetted parts)	stainless steel (1.4404 / 316L); Gasket: FKM
Process connection	threaded connection G 1/4
Probe diameter [mm]	6
Installation length EL [mm]	25

Accessories

Items supplied

Gasket

Remarks

operating voltage "supply class 2" according to cULus

The values for accuracy apply to flowing water.

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x DEUTSCH connector (DT04-3P)

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TM6101-00 — 13.04.2023 —
