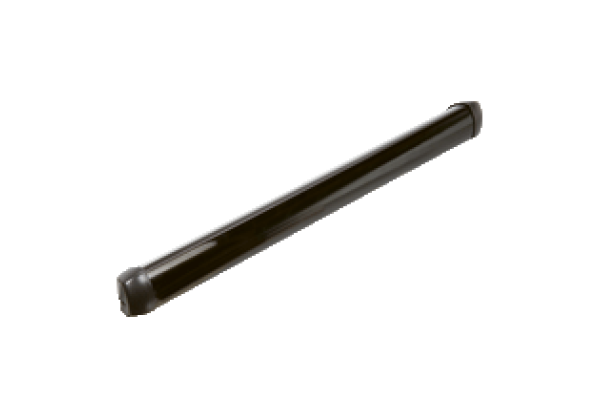

Active infrared scanner TopScan-S-M/L750
Brand: Pepperl+Fuchs
Code: TopScan-S-M/L750
Moving presence sensor for swing doors, Configurable for a wide range of door leaf widths, Category 2, tested and certified to DIN 18650/EN 16005, Modular construction with master/slave modules, Safe function even on difficult floors, Function: Open and secure, Sensor principle: Active infrared scanner
Datasheet excerpt: Technical data of TopScan-S-M/L750
| Product Description |
|---|
| Single or multi-beam light curtain for individual protection according to DIN 18650/EN16005 |
| General specifications | ||
|---|---|---|
| Detection range min. | 0... 1500 mm | |
| Detection range max. | 0... 2500 mm | |
| Reference target | Minimum degree of reflection of the floor: 6 % Minimum degree of reflection to objects being detected: 0 % | |
| Light source | IRED | |
| Light type | modulated infrared light 875 nm | |
| Black-white difference (6 %/90 %) | < 2 % at 2000 mm sensor range | |
| Number of beams | 1 (number of built-in sensor modules AIR) | |
| Operating mode | Background evaluation | |
| Diameter of the light spot | 1.1 cm x 8.3 cm at 2000 mm sensor range | |
| Resolution | Reference object CA DIN 186850-1/EN 16005 in all applicable locations | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 1 | |
| Performance level (PL) | PL c | |
| Category | Cat. 2 | |
| MTTFd | 880 a per module | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 90 % | |
| Indicators/operating means | ||
| Function indicator | LED red/green | |
| Control elements | Sensing range adjuster ; Adjuster for edge monitoring left/right | |
| Electrical specifications | ||
| Operating voltage | 24 V DC +/- 20 % | |
| No-load supply current | 75 mA | |
| Input | ||
| Test input | active at U = 11 V DC at 30 V DC inactive at U = -3 V DC at 5 V DC | |
| Output | ||
| Switching type | Relay de-energized at object inside the scanning range | |
| Signal output | Relay, 1 alternator | |
| Switching voltage | 5 V... 30 V AC/DC | |
| Switching current | max. 300 mA | |
| Response time | ≤ 70 ms | |
| Conformity | ||
| Functional safety | ISO 13849-1 | |
| Product standard | EN 12978 ; EN 16005 ; DIN 18650 | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| TÜV approval | TÜV NORD | |
| Ambient conditions | ||
| Ambient temperature | -10... 50 °C (14... 122 °F) | |
| Relative humidity | Humidity at 20 °C: < 90 % Humidity at 60 °C: < 50 % | |
| Mechanical specifications | ||
| Housing length L | 750 mm | |
| Mounting height | max. 2500 mm | |
| Degree of protection | IP52 , IP54 Optional (with special seal) | |
| Connection | screw terminals ; Cable cross-section 0.3 mm2... 1.3 mm2 (AWG26-16), single-stranded/multistranded CU | |
| Material | ||
| Housing | aluminum / ABS | |
| Optical face | PMMA | |
| Cable length | max. 30 m | |
| Note | Safety fuse ≤ 1 A (slow-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly. | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 10.0.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
