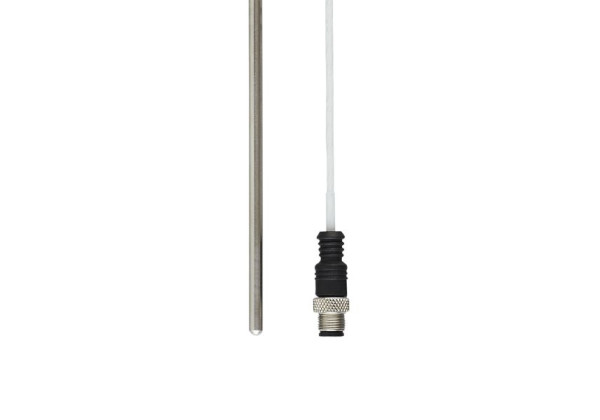

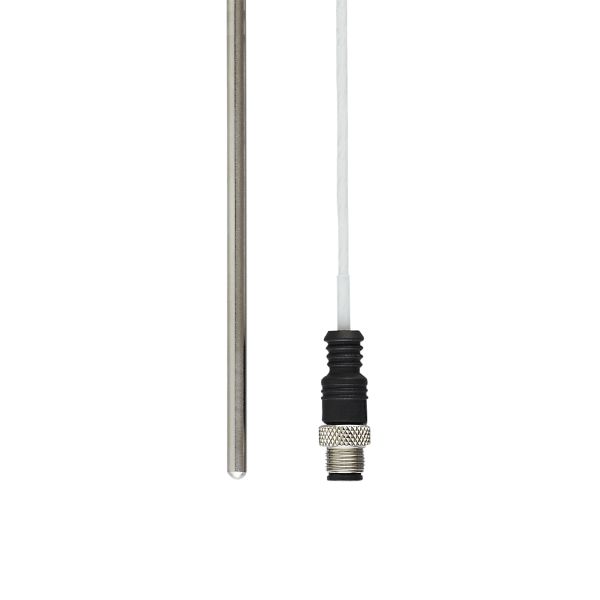

TS0453 Temperature cable sensor with process connection TS-000KLKD06I.../US

Brand: IFM Electronic

Code: TS0453

Precise temperature measurement in containers, tanks and pipes
For the connection to an evaluation unit
Easy process adaptation via clamp fitting or protective tube
Very large temperature measurement range
Simple and 100% sealed connection via M12 connector

Product characteristics

Measuring range

-100...600 °C

-148...1112 °F

Process connection

diameter Ø 6 mm

Installation length EL [mm]

150; (medium temperatures < 200 °C: 200)

Application

Measuring element	1 x Pt 100; (to DIN EN 60751, class A)
Media	liquids and gases
Minimum installation depth [mm]	15

Electrical data

Protection class	III

Measuring/setting range

Probe length L [mm]

200

Measuring range

-100...600 °C

-148...1112 °F

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x\|t\|)

Response times

Dynamic response T05 / T09 [s]	12 / 34; (to DIN EN 60751)

Operating conditions

Protection	IP 67

Tests / approvals

MTTF [years]	11415.5

Mechanical data

Weight [g]	282.9
Dimensions [mm]	Ø 6
Materials	stainless steel (1.4571/316Ti ); PFA/PTFE
Materials (wetted parts)	stainless steel (1.4571/316Ti )
Process connection	diameter Ø 6 mm
Probe diameter [mm]	6
Installation length EL [mm]	150; (medium temperatures < 200 °C: 200)

Remarks

The values for accuracy apply to flowing water.

Pack quantity

1 pcs.

Electrical connection

Connection	Cable: 10 m, PTFE; temperature resistant up to 250 °C
Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TS0453-00 — 26.04.2019 —
