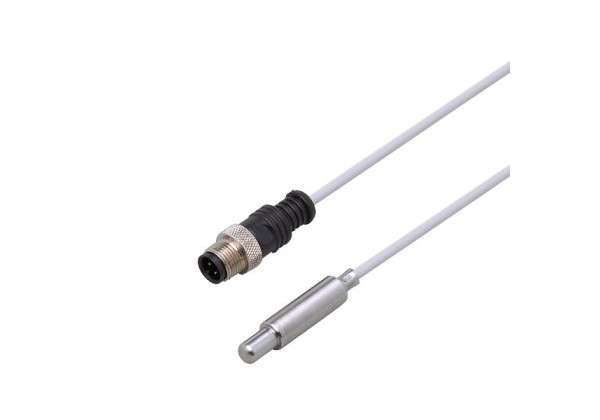

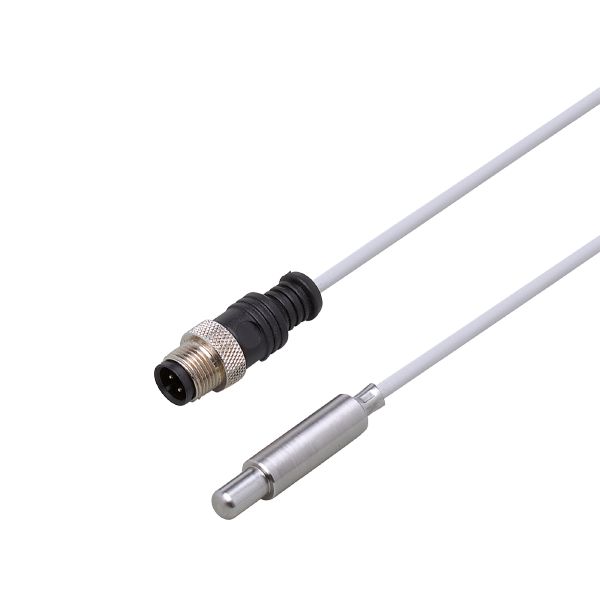

TS2056 - efector600-TS-200KCID10-...../US/

Brand: IFM Electronic

Code: TS2056

Precise temperature measurement in containers, tanks and pipes
For the connection to an evaluation unit
Easy process adaptation via clamp fitting or protective tube
High precision across the entire temperature measurement range
Simple and 100% sealed connection via M12 connector

Product characteristics

Measuring range

-50...250 °C

-58...482 °F

Process connection

diameter Ø 10 mm

Installation length EL [mm]

Application

Measuring element

1 x Pt 100; (to DIN EN 60751, class A)

Media

liquids and gases

Pressure rating [bar]

160

Note on pressure rating

for mounting in progressive ring fitting

Minimum installation depth [mm]

Electrical data

Protection class	III

Measuring/setting range

Probe length L [mm]

Measuring range

-50...250 °C

-58...482 °F

Note on measuring range

stationary: 280 °C / 536 °F (10000 h)

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x\|t\|)

Response times

Dynamic response T05 / T09 [s]	12 / 39; (to DIN EN 60751)

Operating conditions

Protection	IP 67

Tests / approvals

MTTF [years]	11415.5

Mechanical data

Weight [g]	86.6
Dimensions [mm]	Ø 10
Materials	stainless steel (1.4404 / 316L); PFA/PTFE
Materials (wetted parts)	stainless steel (1.4404 / 316L)
Process connection	diameter Ø 10 mm
Probe diameter [mm]	10
Installation length EL [mm]	42

Remarks

The values for accuracy apply to flowing water.

Pack quantity

1 pcs.

Electrical connection

Connection	Cable: 2 m, PTFE
Connection	Connector: 1 x M12; coding: A
