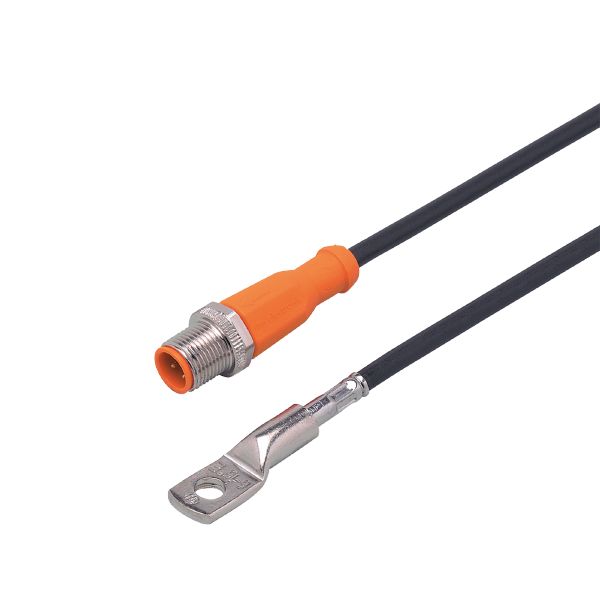

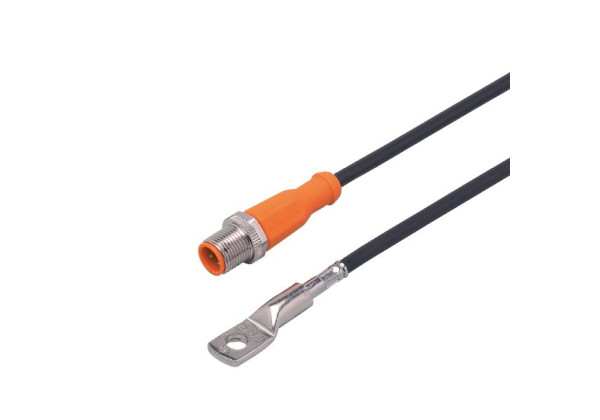

TS2229 - efector600-TS-PT100 ANLEGEFUEHLER

Brand: IFM Electronic

Code: TS2229

Precise temperature measurement on machine surfaces
For the connection to an evaluation unit
Compact housing for installation where space is restricted
High precision across the entire temperature measurement range
Gold-plated contacts for reliable electrical connections

Product characteristics

Measuring range

-40...90 °C

-40...194 °F

Process connection

bolt-on sensor 12 x 8,7 x 51 mm

Application

Special feature	Gold-plated contacts
Measuring element	1 x Pt 100; (to DIN EN 60751, class A)
Installation	surface mount RTD for solid bodies

Electrical data

Insulation rating [V]	2500; (insulation between sensor housing and internal structure of the sensor)
Protection class	III

Measuring/setting range

Measuring range

-40...90 °C

-40...194 °F

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x\|t\|)

Response times

Dynamic response T05 / T09 [s]	9 / 15; (values for a flat aluminium surface (anodised) using a conductive heat paste; reference values for moving water : 10 / 24 (< 0,1 m/s))

Operating conditions

Protection	IP 67

Tests / approvals

MTTF [years]	11415.5

Mechanical data

Weight [g]	88.5
Housing	bolt-on sensor
Dimensions [mm]	12 x 8.7 x 51
Materials	stainless steel (1.4303 / 305 / 308); copper nickel-plated
Process connection	bolt-on sensor 12 x 8,7 x 51 mm

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TS2229-00 — 28.10.2016 —
