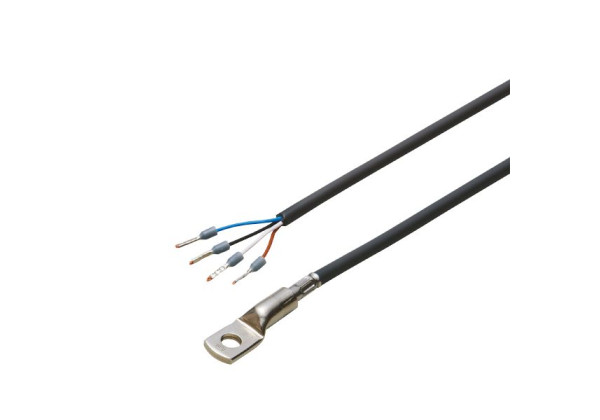

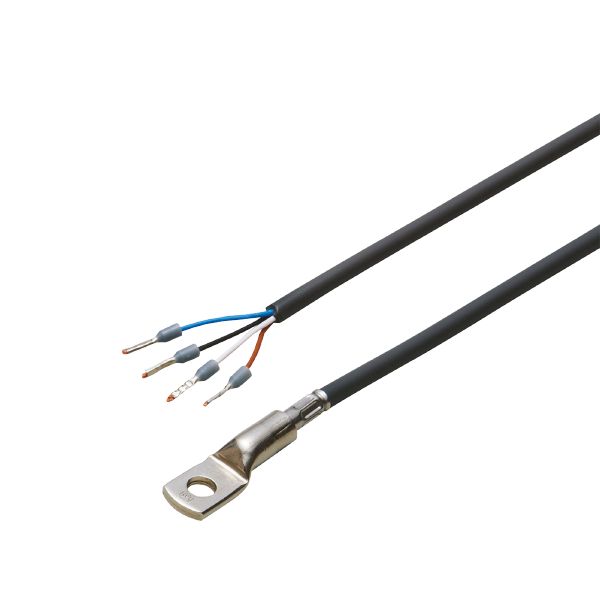

TS2239 - efector600-TS-200-KL /US
Brand: IFM Electronic
Code: TS2239
- Precise temperature measurement on machine surfaces
- For the connection to an evaluation unit
- Compact housing for installation where space is restricted
- High precision across the entire temperature measurement range
- Gold-plated contacts for reliable electrical connections
Product characteristics
| Measuring range |
| ||
|---|---|---|---|
| Process connection | bolt-on sensor 12,5 x 8,7 x 47 mm |
Application
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
|---|---|
| Installation | surface mount RTD for solid bodies |
Electrical data
| Insulation rating [V] | 500 |
|---|---|
| Protection class | III |
Measuring/setting range
| Measuring range |
|
|---|
Accuracy / deviations
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Response times
| Dynamic response T05 / T09 [s] | 12 / 39; (values for a flat aluminium surface (anodised) using a conductive heat paste; reference values for moving water : 10 / 24 (< 0,1 m/s)) |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| MTTF [years] | 12683.9 |
|---|
Mechanical data
| Weight [g] | 101.4 |
|---|---|
| Housing | bolt-on sensor |
| Dimensions [mm] | 12.5 x 8.7 x 47 |
| Materials | stainless steel (1.4303 / 305 / 308); copper nickel-plated |
| Process connection | bolt-on sensor 12,5 x 8,7 x 47 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PUR, Ø 4.9 mm; with wire end ferrules; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TS2239-00 — 05.06.2023 —
