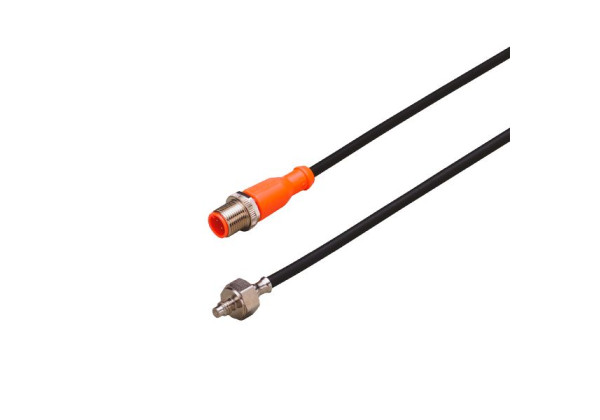

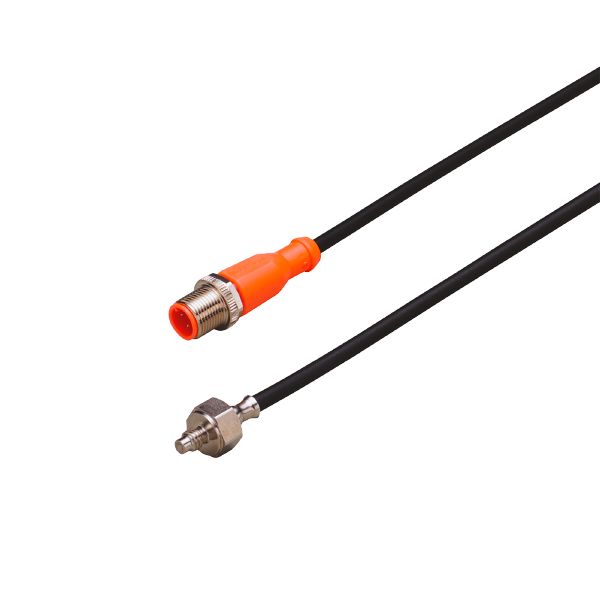

TS2689 - efector600-TS-200KLKM06...../US
Brand: IFM Electronic
Code: TS2689
- Precise temperature measurement on machine surfaces
- For the connection to an evaluation unit
- Compact housing for installation where space is restricted
- High precision across the entire temperature measurement range
- Simple and 100% sealed connection via M12 connector
Product characteristics
| Measuring range |
| ||
|---|---|---|---|
| Process connection | threaded connection M6 external thread |
Application
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
|---|---|
| Installation | surface mount RTD for solid bodies |
Electrical data
| Protection class | III |
|---|
Measuring/setting range
| Measuring range |
|
|---|
Accuracy / deviations
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Response times
| Dynamic response T05 / T09 [s] | 3 / 9; (to DIN EN 60751) |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| MTTF [years] | 11415.5 |
|---|
Mechanical data
| Weight [g] | 86.75 |
|---|---|
| Housing | screw-in sensor |
| Dimensions [mm] | M6 / L = 26 |
| Thread designation | M6 |
| Materials | stainless steel (1.4404 / 316L) |
| Process connection | threaded connection M6 external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PUR |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TS2689-00 — 13.04.2023 —
