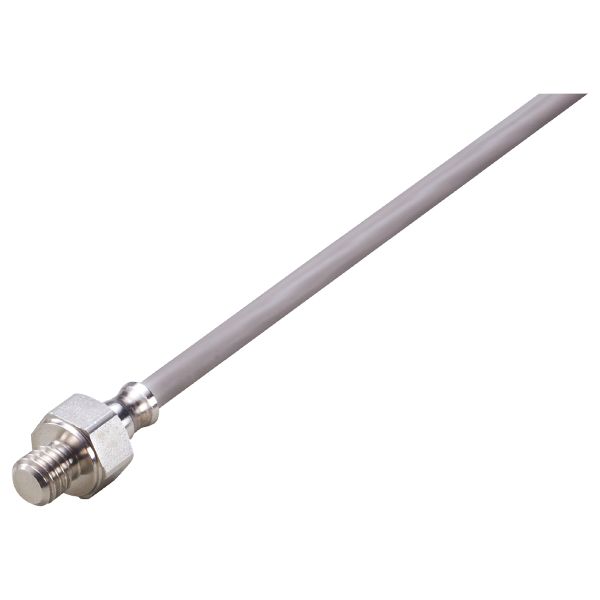

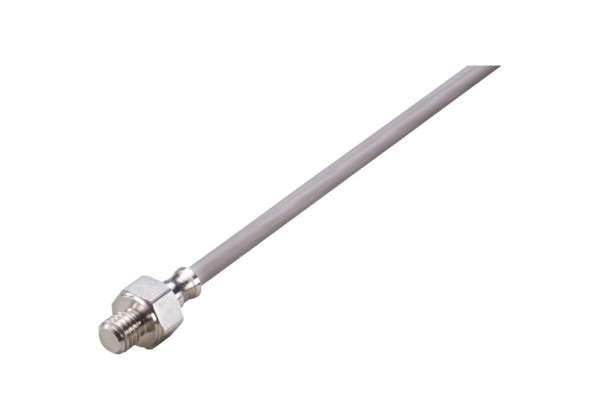

TS285A Temperature cable sensor with screw-in sensor TS-200KLKM08..../3D/3G
Brand: IFM Electronic
Code: TS285A
- Precise temperature measurement on machine surfaces
- For applications in hazardous areas
- Compact housing for installation where space is restricted
- High precision across the entire temperature measurement range
Product characteristics
| Measuring range |
| ||
|---|---|---|---|
| Process connection | threaded connection M8 external thread |
Application
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A; operating current max. 10 mA) |
|---|---|
| Installation | surface mount RTD for solid bodies |
Electrical data
| Operating voltage [V] | < 6 DC |
|---|---|
| Insulation rating [V] | 2500; (insulation between sensor housing and internal structure of the sensor) |
| Protection class | III |
Measuring/setting range
| Measuring range |
| ||
|---|---|---|---|
| Note on measuring range |
|
Accuracy / deviations
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Response times
| Dynamic response T05 / T09 [s] | 8 / 20; (for water (70 °C; 0,04 m/s)) |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| ATEX marking | |
|---|---|
| | |
| MTTF [years] | 14269.4 |
Mechanical data
| Weight [g] | 111.05 |
|---|---|
| Housing | screw-in sensor |
| Dimensions [mm] | M8 |
| Thread designation | M8 |
| Materials | stainless steel (1.4404 / 316L) |
| Process connection | threaded connection M8 external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, silicone; 4 x 0.34 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — TS285A — 25.04.2023 —
