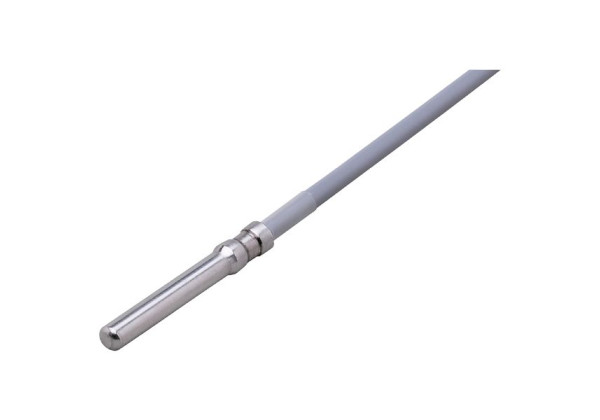

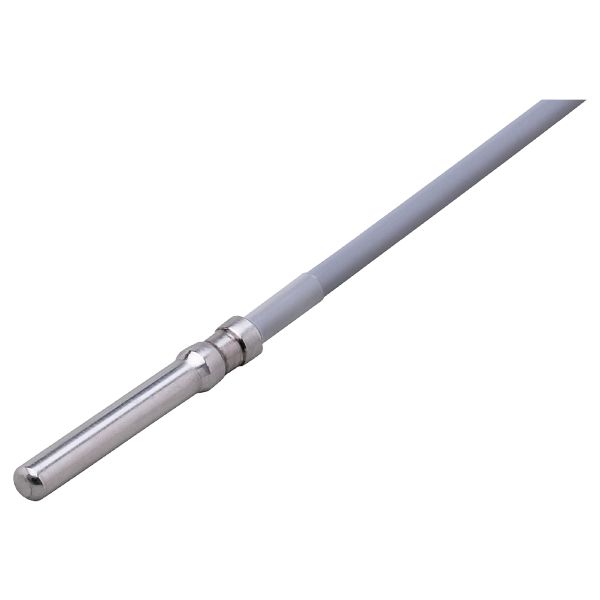

TS325A Temperature cable sensor with process connection TS-300KEKD06...../3M/3D/3G
Brand: IFM Electronic
Code: TS325A
- Precise temperature measurement in containers, tanks and pipes
- For applications in hazardous areas
- Easy process adaptation via clamp fitting or protective tube
- High precision across the entire temperature measurement range
Product characteristics
| Measuring range |
| ||
|---|---|---|---|
| Process connection | diameter Ø 5 mm |
Application
| Special feature | Screened cable |
|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class B; operating current max. 10 mA) |
| Media | liquids and gases |
| Minimum installation depth [mm] | 15 |
Electrical data
| Insulation rating [V] | 2500; (insulation between sensor housing and internal structure of the sensor) |
|---|---|
| Protection class | III |
Measuring/setting range
| Measuring range |
| ||
|---|---|---|---|
| Note on measuring range |
|
Accuracy / deviations
| Accuracy [K] | ± (0,30 K + 0,005 x|t|) |
|---|
Response times
| Dynamic response T05 / T09 [s] | 4 / 10; (to DIN EN 60751) |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| ATEX marking | |
|---|---|
| | |
| MTTF [years] | 19025.9 |
Mechanical data
| Weight [g] | 89 |
|---|---|
| Dimensions [mm] | Ø 5 / L = 40 |
| Materials | stainless steel (1.4404 / 316L) |
| Materials (wetted parts) | stainless steel (1.4404 / 316L) |
| Process connection | diameter Ø 5 mm |
| Probe diameter [mm] | 5 |
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 3 m, silicone, shielded |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — TS325A — 23.11.2012 —
