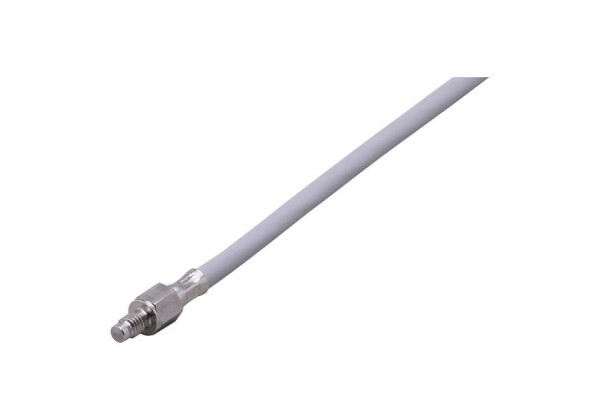

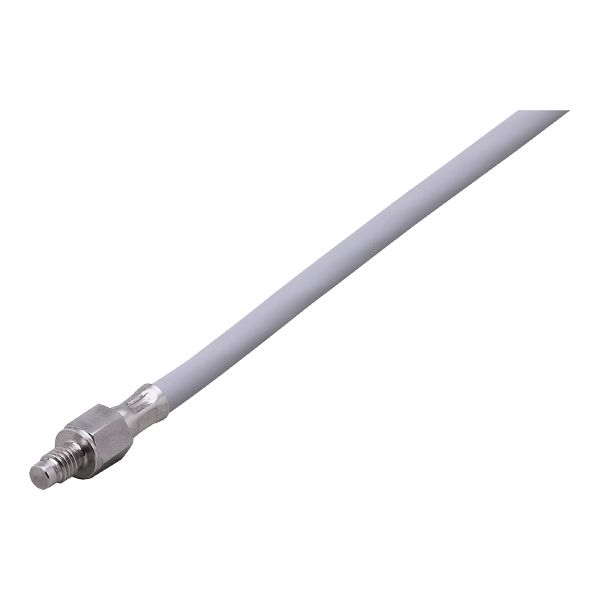

TS4759 Temperature cable sensor with screw-in sensor TS-PT100-SCREW-IN M5/4M
Brand: IFM Electronic
Code: TS4759
- Precise temperature measurement on machine surfaces
- For the connection to an evaluation unit
- Compact housing for installation where space is restricted
- Large temperature measurement range
Product characteristics
| Measuring range |
| ||
|---|---|---|---|
| Process connection | threaded connection M5 external thread |
Application
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
|---|---|
| Installation | surface mount RTD for solid bodies |
Electrical data
| Protection class | III |
|---|
Measuring/setting range
| Measuring range |
|
|---|
Accuracy / deviations
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Response times
| Dynamic response T05 / T09 [s] | 3 / 8; (to DIN EN 60751) |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| MTTF [years] | 12683.9 |
|---|
Mechanical data
| Weight [g] | 159.6 |
|---|---|
| Housing | screw-in sensor |
| Dimensions [mm] | M5 |
| Thread designation | M5 |
| Materials | stainless steel (1.4404 / 316L) |
| Process connection | threaded connection M5 external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 4 m, silicone |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TS4759-00 — 13.04.2023 —
