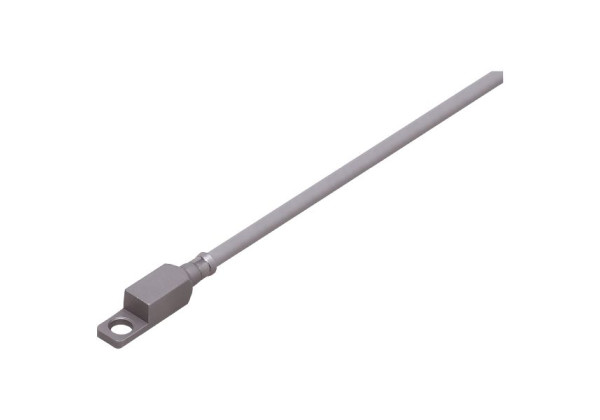

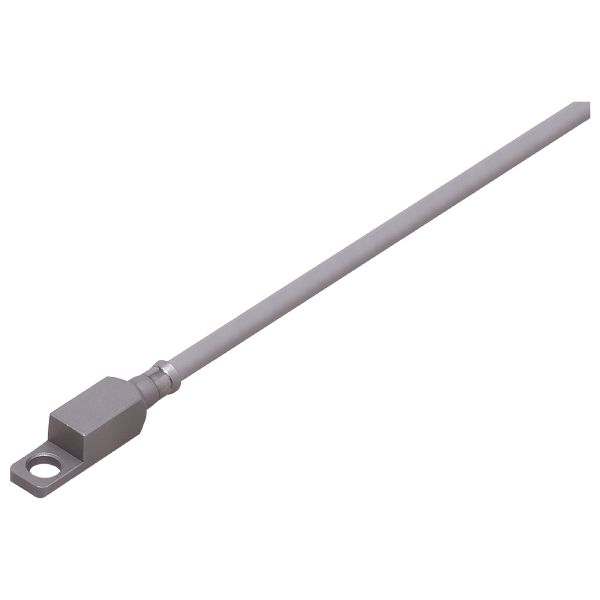

TS522A Temperature cable sensor with bolt-on sensor TS-500KEKD06...../5M/3D/3G
Brand: IFM Electronic
Code: TS522A
- Precise temperature measurement on machine surfaces
- For applications in hazardous areas
- Compact housing for installation where space is restricted
- High precision across the entire temperature measurement range
Product characteristics
| Measuring range |
| ||
|---|---|---|---|
| Process connection | bolt-on sensor 10 x 10 x 42 mm |
Application
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
|---|---|
| Installation | surface mount RTD for solid bodies |
Electrical data
| Protection class | III |
|---|
Measuring/setting range
| Measuring range |
| ||
|---|---|---|---|
| Note on measuring range |
|
Accuracy / deviations
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Response times
| Dynamic response T05 / T09 [s] | 13 / 39 |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| ATEX marking | |
|---|---|
| | |
| MTTF [years] | 19025.9 |
Mechanical data
| Weight [g] | 232 |
|---|---|
| Housing | bolt-on sensor |
| Dimensions [mm] | 10 x 10 x 42 |
| Materials | stainless steel (1.4404 / 316L) |
| Process connection | bolt-on sensor 10 x 10 x 42 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 5 m, silicone |
|---|
