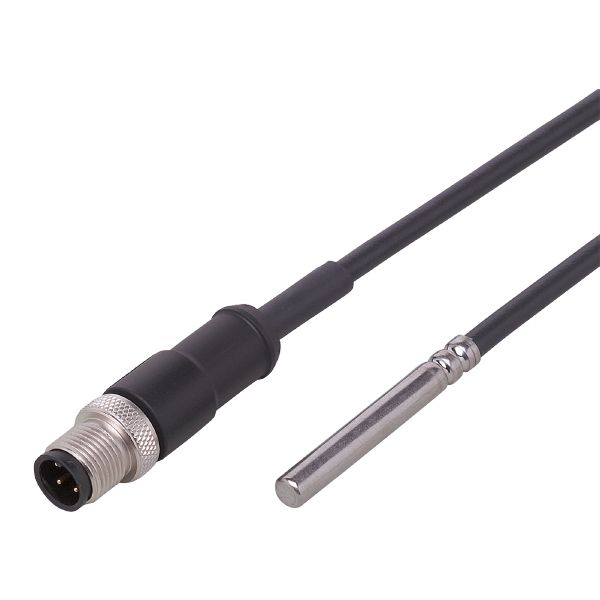

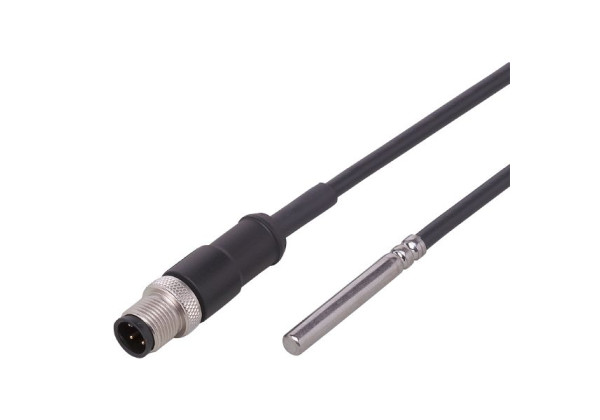

TS5289 - efector600-TS-500KLKD6-............../US/
Brand: IFM Electronic
Code: TS5289
- Precise temperature measurement in containers, tanks and pipes
- For the connection to an evaluation unit
- Easy process adaptation via clamp fitting or protective tube
- High precision across the entire temperature measurement range
- Simple and 100% sealed connection via M12 connector
Product characteristics
| Measuring range |
| ||
|---|---|---|---|
| Process connection | diameter Ø 6 mm |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Media | liquids and gases |
| Minimum installation depth [mm] | 15 |
Electrical data
| Protection class | III |
|---|
Measuring/setting range
| Measuring range |
|
|---|
Accuracy / deviations
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Response times
| Dynamic response T05 / T09 [s] | 3 / 10; (to DIN EN 60751) |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| MTTF [years] | 11415.5 |
|---|
Mechanical data
| Weight [g] | 180.2 |
|---|---|
| Housing | measuring probe |
| Dimensions [mm] | Ø 6 / L = 45 |
| Materials | stainless steel |
| Materials (wetted parts) | stainless steel (1.4404 / 316L) |
| Process connection | diameter Ø 6 mm |
| Probe diameter [mm] | 6 |
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 5 m, PUR |
|---|---|
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TS5289-00 — 13.04.2023 —
