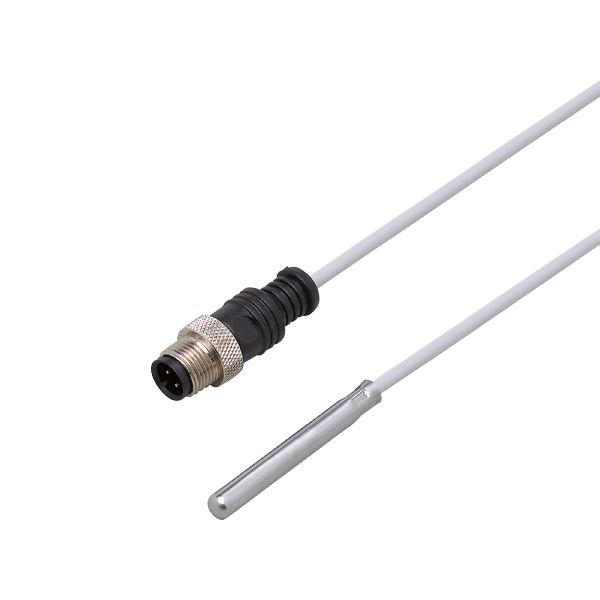

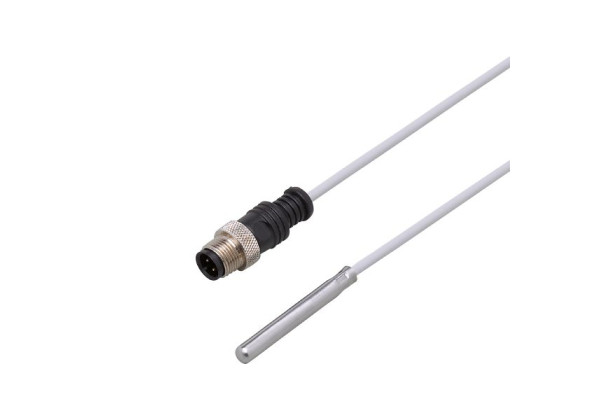

TS9256 - efector600-TS-015KIKD06...../US
Brand: IFM Electronic
Code: TS9256
- Precise temperature measurement in containers, tanks and pipes
- For the connection to an evaluation unit
- Easy process adaptation via clamp fitting or protective tube
- Large temperature measurement range
- Simple and 100% sealed connection via M12 connector
Product characteristics
| Measuring range |
| ||
|---|---|---|---|
| Process connection | diameter Ø 6 mm | ||
| Installation length EL [mm] | 50 |
Application
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
|---|---|
| Media | liquids and gases |
| Minimum installation depth [mm] | 15 |
Electrical data
| Protection class | III |
|---|
Measuring/setting range
| Probe length L [mm] | 50 | ||
|---|---|---|---|
| Measuring range |
| ||
| Note on measuring range |
|
Accuracy / deviations
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Response times
| Dynamic response T05 / T09 [s] | 11 / 37; (to DIN EN 60751) |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| MTTF [years] | 11415.5 |
|---|
Mechanical data
| Weight [g] | 26.4 |
|---|---|
| Dimensions [mm] | Ø 6 |
| Materials | stainless steel (1.4571/316Ti ); PFA/PTFE |
| Materials (wetted parts) | stainless steel (1.4571/316Ti ) |
| Process connection | diameter Ø 6 mm |
| Probe diameter [mm] | 6 |
| Installation length EL [mm] | 50 |
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 0.15 m, PTFE |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TS9256-00 — 13.04.2023 —
